Full-size NGFF M.2 B Key/mSATA SSD to 2.5 SATA3 Adapter 2 in 1 with Plastic Enclosure
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | ZYX259 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | $1.5 per unit |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | BQZYX | اسم المنتج: | بروتوكول SATA 2 في 1 SSD إلى محول SATA 3.0 |
|---|---|---|---|
| واجهة المنتج: | ساتا 2.5 بوصة SSD | فتحة SSD 1: | NGFF (M.2) المفتاح-B |
| دعم حجم SSD 1: | 22*30 مللي متر (بروتوكول ساتا) | دعم حجم SSD 2: | 22*42 مللي متر (بروتوكول SATA) |
| دعم حجم SSD 3: | 22*60 مللي متر (بروتوكول ساتا) | دعم حجم SSD 4: | 22*80 مللي متر (بروتوكول ساتا) |
| فتحة SSD 2: | مساتا | حجم SSD: | بالحجم الكامل |
| حجم لوحة المحول: | 100*70 | واجهة الإخراج: | SATA 3.0 |
| إبراز: | mSATA SSD to 2.5 SATA3 Adapter,NGFF M.2 B Key 2.5 SATA3 Adapter,,NGFF M.2 B Key 2.5 SATA3 Adapter |
||
منتوج وصف
Full-size NGFF M.2 B Key/mSATA SSD to 2.5 SATA3 Adapter 2 in 1 with Plastic Enclosure
Product Description

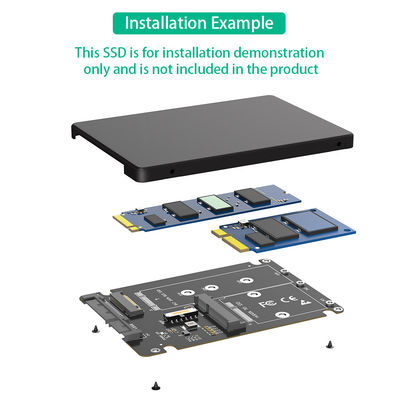

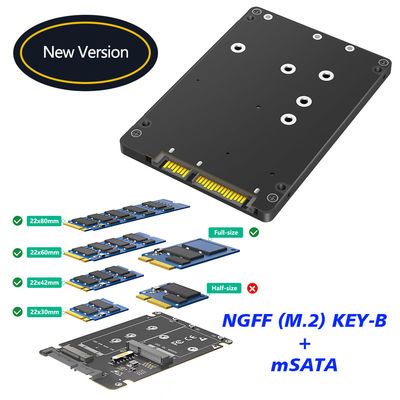

This 2-in-1 SSD adapter card supports dual SATA protocols, converting M.2 NGFF or mSATA SSDs to standard 2.5" SATA 3.0 interface with a protective plastic enclosure.
Key Specifications
- Supports full-size mSATA SSDs
- Compatible with NGFF M.2 Key B SATA-bus SSDs

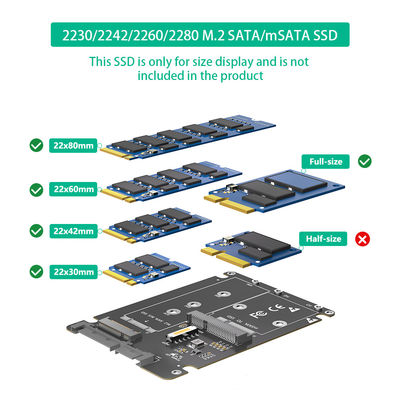

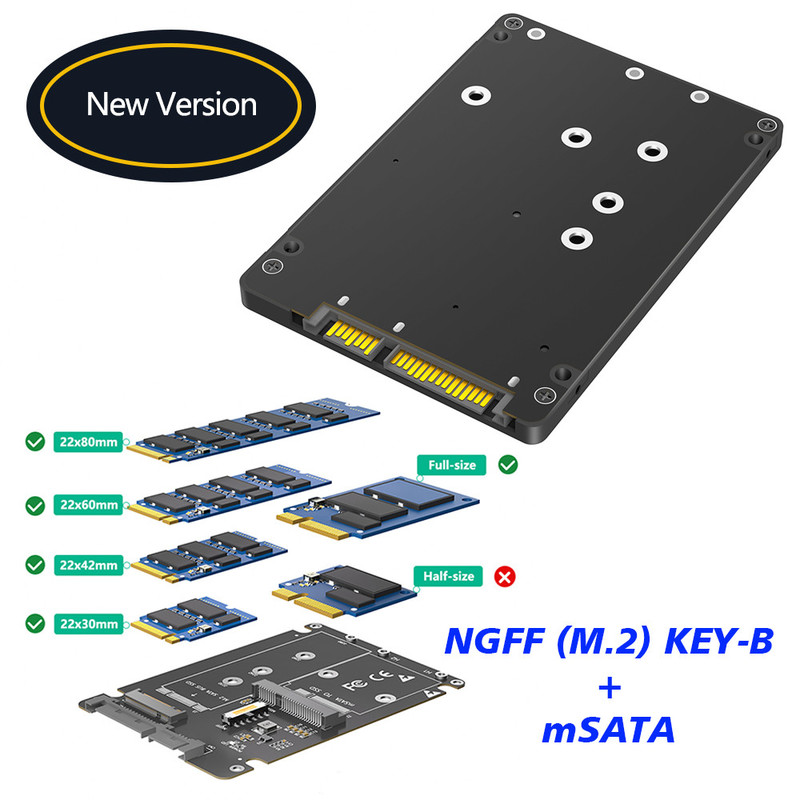

- Accommodates four M.2 SSD sizes: 2230/2242/2260/2280
- Transparent to operating systems - no drivers required
- Supports SATA3/6Gbps interface speeds
Product Features

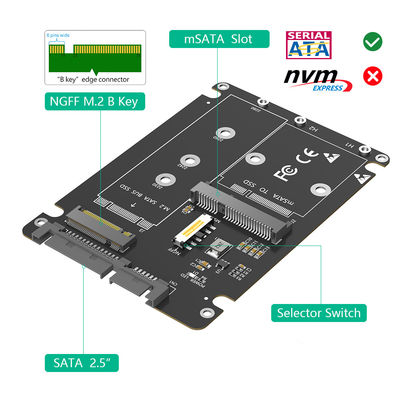

Dual Slot Design
Parallel layout with two independent slots for M.2 NGFF Key-B and mSATA SSDs, optimized for stable signal transmission and easy operation.
Wide Compatibility
Supports all common M.2 SATA SSD sizes (2230/2242/2260/2280) and full-size mSATA SSDs, with gold-plated connectors for reliable contact.

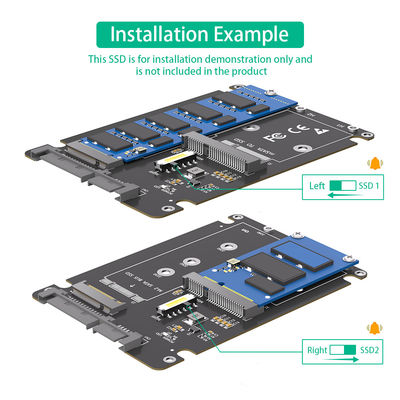

Toggle Switch
Mechanical switch allows easy selection between M.2 and mSATA SSD modes without physical drive swapping.

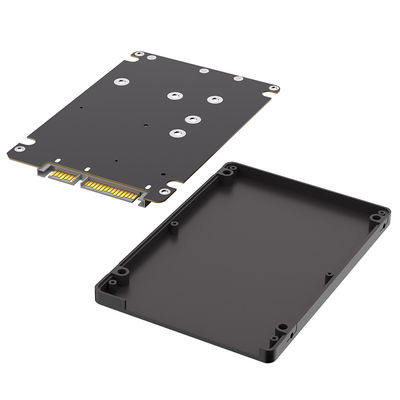

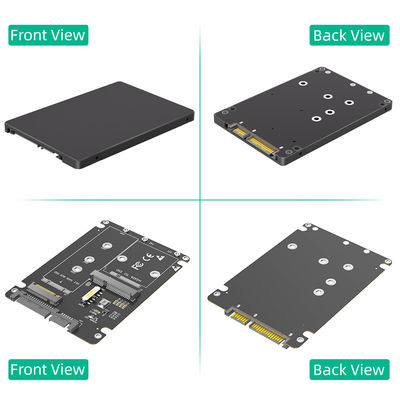

Precision Enclosure

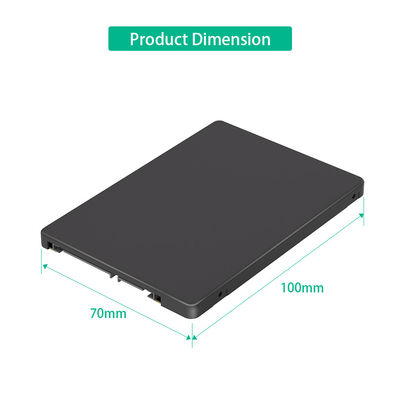

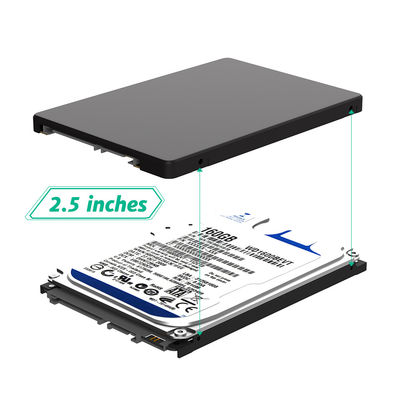

2.5" form factor plastic case matches standard hard drive dimensions for easy installation in any compatible bay.
Technical Specifications
Data Interface (7-pin)
| Pin | Signal | Definition |
|---|---|---|
| 1 | GND Ground | Grounding, usually connected to the negative pole |
| 2 | A Transmit+ | Positive signal interface for data transmission |
| 3 | A Transmit- | Data transmission negative signal interface |
| 4 | GND Ground | Grounding, usually connected to the negative pole |
| 5 | B Receive- | Data receiving negative signal interface |
| 6 | B Receive+ | Data receiving positive signal interface |
| 7 | GND Ground | Grounding, usually connected to the negative pole |
Power Interface (15-pin)
| Pin | Signal | Wire Color | Definition |
|---|---|---|---|
| 1 | +3.3VDC | Orange | DC 3.3V positive power supply pin |
| 2 | +3.3VDC | Orange | DC 3.3V positive power supply pin |
| 3 | +3.3VDC | Orange | DC 3.3V positive power pin, pre charged |
| 4 | GND | Black | Grounding, paired with first circuit |
| 5 | GND | Black | Grounding, paired with second circuit |
| 6 | GND | Black | Grounding, paired with third circuit |
| 7 | +5VDC | Red | DC 5V positive power pin, pre charged |
| 8 | +5VDC | Red | DC 5V positive power supply pin |
| 9 | +5VDC | Red | DC 5V positive power supply pin |
| 10 | GND | Black | Grounding, paired with second circuit |
| 11 | Optional | Black | Reserved pin |
| 12 | GND | Black | Grounding, paired with first circuit |
| 13 | +12VDC | Yellow | DC 12V positive power pin, pre charged |
| 14 | +12VDC | Yellow | DC 12V positive power supply pin |
| 15 | +12VDC | Yellow | DC 12V positive power supply pin |
Applications
- Computer manufacturing - flexible storage configuration for laptops and desktops
- Device upgrades - modernize older systems with mSATA or M.2 SSDs
- DIY projects - create custom storage solutions with multiple SSD types

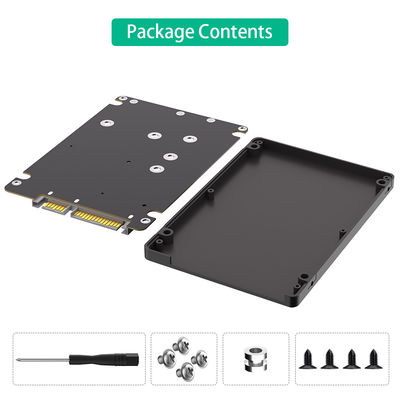

Package Contents
- 1 x PCBA Adapter
- 1 x Screw Driver
- 4 x M2 Silver Screws
- 4 x M2 Black Screws
- 1 x Standoff
