Convenient SATA 3.0 to M.2 NGFF mSATA SSD Adapter Card with 3.5" Hard Disk Bracket
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 220 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | BQZYX | اسم المنتج: | بطاقة محول SATA 3.0 إلى M.2 NGFF وMSATA SSD |
|---|---|---|---|
| ميزة: | مع حامل القرص الصلب مقاس 3.5 بوصة | مادة: | PCBA |
| معدل النقل: | 6 جيجابت في الثانية | تطبيق: | حاسوب |
| واجهة SSD: | mSATA / NGFF M.2 مفتاح-B | دعم SSD M.2 (NGFF): | 2230/2242/2260/2280 |
| إبراز: | SATA 3.0 mSATA Adapter,3.5” Hard Disk Bracket mSATA Adapter,NGFF mSATA Adapter,3.5” Hard Disk Bracket mSATA Adapter,NGFF mSATA Adapter |
||
منتوج وصف
Convenient SATA 3.0 to M.2 NGFF mSATA SSD Adapter Card with 3.5" Hard Disk Bracket
Product Overview
This SSD adapter efficiently connects SSDs with different interface types to computers, providing convenient and high-speed data storage and transmission solutions.
Key Features
- Latest all-in-one M.2 & mSATA SSD to SATA Adapter supporting 5 different size M.2 or mSATA SSDs
- Supports M.2(NGFF) SSD form factors: 2230/2242/2260/2280
- Supports full size (50.95×30mm) mSATA SSD
- Hi-Speed SATA3 6Gbps interface with read speeds up to 520MB/s
- Blue LED indicates 3.3V power status
- Transparent to operating system - no software drivers required
Interface Specifications

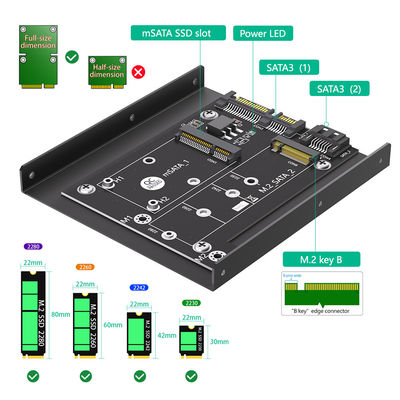

mSATA slot: Precise support for mSATA full height SSDs, ideal for space-constrained devices like thin laptops and embedded systems.
M.2 Key-B slot: Compatible with 2230, 2242, 2260, and 2280 size SSDs, offering flexibility for various performance needs.
SATA3 interface output: 6Gbps high-speed transmission for large data transfers with broad compatibility across computers and motherboards.
Data Interface (7-pin)
| Pin | Definition | Function |
|---|---|---|
| 1 | GND Ground | Grounding, usually connected to the negative pole |
| 2 | A Transmit | Positive signal interface for data transmission |
| 3 | A Transmit | Data transmission negative signal interface |
| 4 | GND Ground | Grounding, usually connected to the negative pole |
| 5 | B-Receive | Data receiving negative signal interface |
| 6 | B-Receive | Data receiving positive signal interface |
| 7 | GND Ground | Grounding, usually connected to the negative pole |
Power Interface (15 Pin)
| Pin | Signal | Wire Color | Definition |
|---|---|---|---|
| 1 | +3.3VDC | Orange | DC 3.3V positive power supply pin |
| 2 | +3.3VDC | Orange | DC 3.3V positive power supply pin |
| 3 | +3.3VDC | Orange | DC 3.3V positive power pin, pre charged |
| 4 | GND | Black | Grounding, paired with first circuit |
| 5 | GND | Black | Grounding, paired with second circuit |
| 6 | GND | Black | Grounding, paired with third circuit |
| 7 | +5VDC | Red | DC 5V positive power pin, pre charged |
| 8 | +5VDC | Red | DC 5V positive power supply pin |
| 9 | +5VDC | Red | DC 5V positive power supply pin |
| 10 | GND | Black | Grounding, paired with second circuit |
| 11 | Optional | Black | Reserved pins |
| 12 | GND | Black | Grounding, paired with first circuit |
| 13 | +12VDC | Yellow | DC 12V positive power pin, pre charged |
| 14 | +12VDC | Yellow | DC 12V positive power supply pin |
| 15 | +12VDC | Yellow | DC 12V positive power supply pin |
Product Advantages
- Multi-drive support: Dual slots for mSATA and M.2 SSDs to meet diverse storage needs
- High-speed transfer: SATA3 6Gbps interface with 520MB/s read speed for large file handling

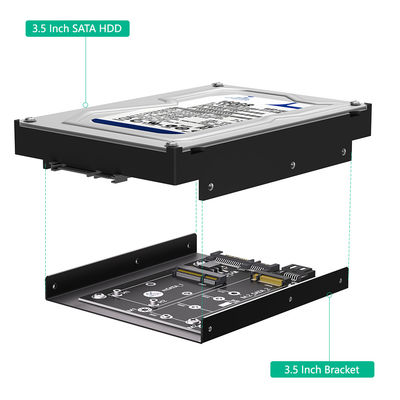

- 3.5-inch bracket: Included mounting bracket for secure installation in desktop cases
- Power monitoring: Blue LED clearly indicates 3.3V power status
- Universal compatibility: Works with various computers and motherboards without additional drivers
Installation Guide
- Confirm available SATA3 interface on your motherboard
- Insert adapter card into motherboard's SATA3 interface
- Select appropriate SSD and insert into corresponding slot (mSATA or M.2)
- Install 3.5-inch bracket in computer case for secure mounting
- Connect power - blue LED indicates proper power supply
- Install drivers if needed and begin using your storage solution
Applications
- Computer upgrades without motherboard replacement
- Reliable data backup across multiple drive types
- Gaming performance enhancement with fast loading
- Enterprise storage solutions with high-capacity options

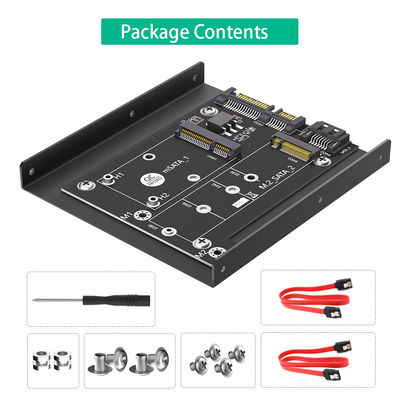

Package Contents
- 1x Msata/M2 to SATA3 Adapter with 3.5 inch HDD bracket
- 2x SATA cable
- 1x screwdriver
- 1x screw bag
