2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure

2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure

تفاصيل المنتج:

مكان المنشأ: الصين
اسم العلامة التجارية: BQZYX
رقم الموديل: ZYX260

شروط الدفع والشحن:

الحد الأدنى لكمية: 50-100 قطعة
الأسعار: $1.5 per unit
تفاصيل التغليف: حقيبة كهرباء
وقت التسليم: 10-15 أيام العمل
شروط الدفع: T/T ، Western Union
القدرة على العرض: 190000 قطعة شهريا
افضل سعر نتحدث الآن

معلومات تفصيلية
اسم العلامة التجارية: BQZYX اسم المنتج: محول MSATA M.2 NGFF SSD إلى 2.5 بوصة SATA 6.0 جيجابت/ثانية
واجهة المنتج: ساتا 2.5 بوصة NGFF SSD الحجم 1: 22*30 مللي متر (بروتوكول SATA)
NGFF SSD الحجم 2: 22*42 مللي متر (بروتوكول SATA) NGFF SSD الحجم 3: 22*60 مللي متر (بروتوكول ساتا)
NGFF SSD الحجم 4: 22*80 مللي متر (بروتوكول ساتا) واجهة: مساتا

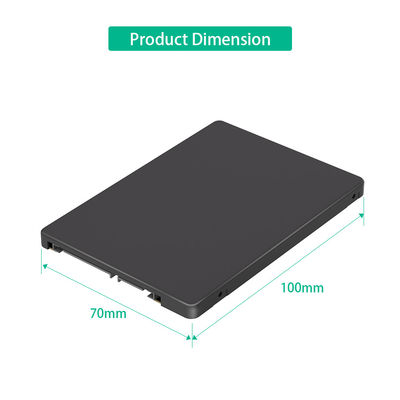

حجم SSD: بالحجم الكامل حجم لوحة المحول: 100*70: 100*70
يكتب: بطاقة المحول ميزة: دعم mSATA وM.2 SSD
نظام الدعم: Windows ، Mac ، Linux لون: أسود
إبراز:

M.2 NGFF Key B To 2.5 SATA3 Adapter,2 in 1 2.5 SATA3 Adapter,MSATA SSD To 2.5 SATA3 Adapter

,

2 in 1 2.5 SATA3 Adapter

,

MSATA SSD To 2.5 SATA3 Adapter

منتوج وصف

2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure

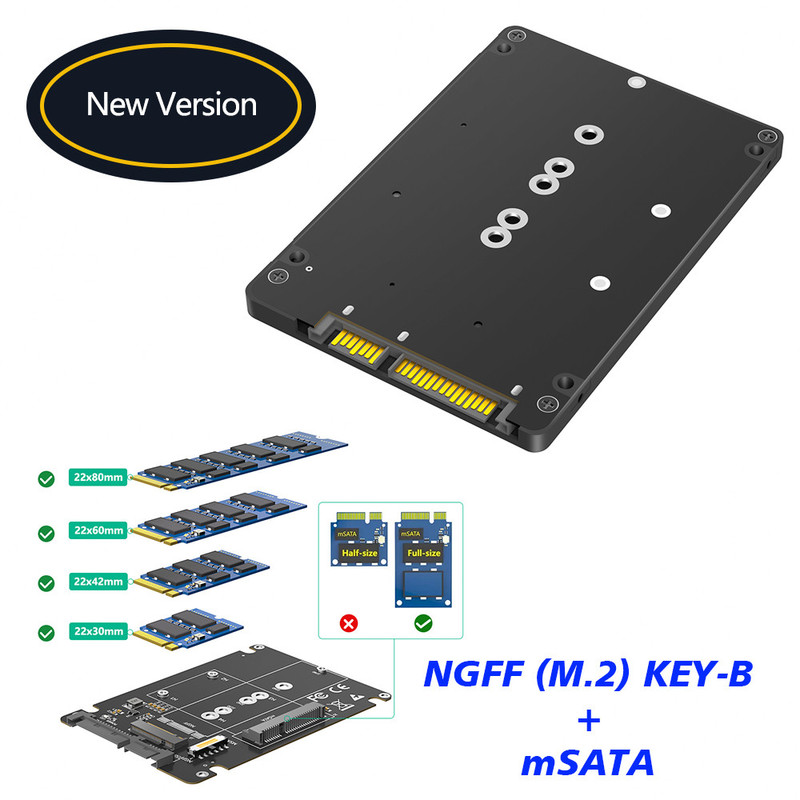

This innovative adapter combines M.2 NGFF Key B and mSATA SSD compatibility into a single 2.5-inch SATA3 enclosure, offering flexible storage solutions for computer manufacturers and end users.
Key Specifications
  • Supports full-size mSATA SSD
  • Compatible with NGFF M.2 Key B SATA-bus SSD

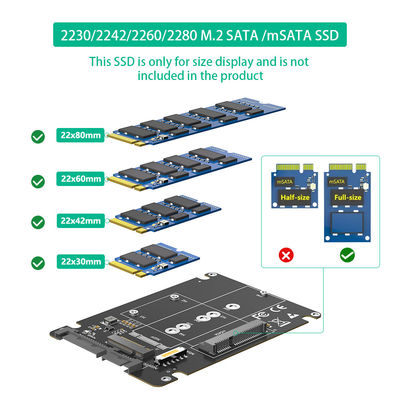

  • Accommodates 4 sizes of NGFF M.2 SSDs: 2230/2242/2260/2280
  • Transparent to operating systems - no drivers required
  • Supports Hi-Speed SATA3/6Gbps interface
2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 0 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 1
Product Features

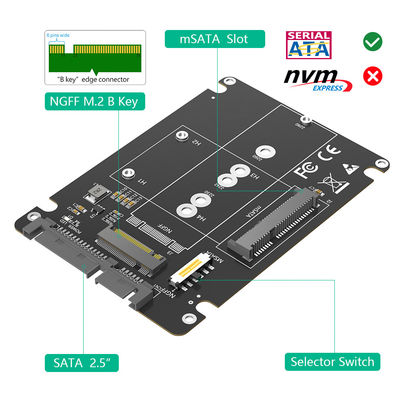

Innovative Cross Dual Slot Layout
The space-saving cross design maximizes board utilization while maintaining optimal signal integrity for both SSD types, ensuring stable high-speed data transfer.
Wide Compatibility
Supports four sizes of NGFF M.2 Key B SSDs (2230/2242/2260/2280) and full-size mSATA SSDs, providing flexibility for various applications and device upgrades.

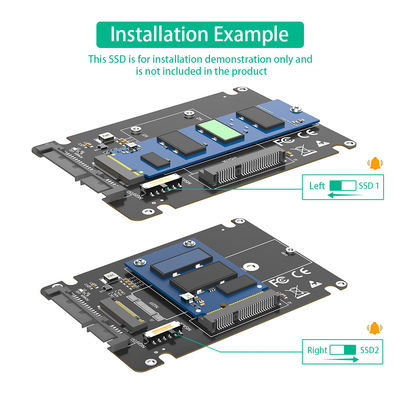

Convenient SSD Switching
The mechanical toggle switch allows easy selection between NGFF and mSATA SSDs without physical drive swapping, ideal for testing and multi-scenario use.

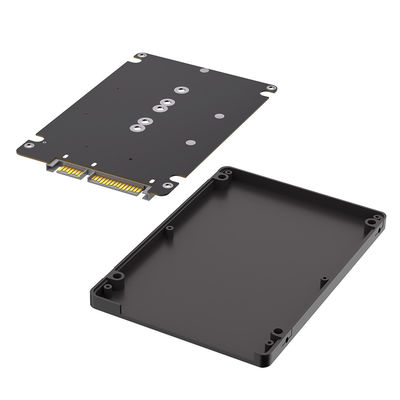

Precision Plastic Enclosure

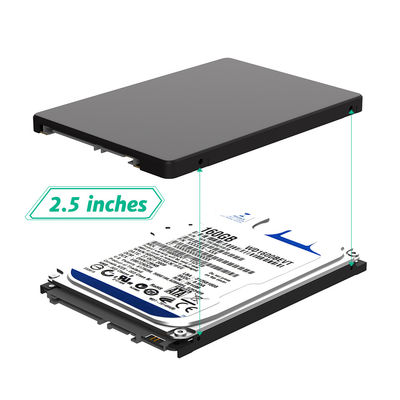

The precisely dimensioned 2.5-inch housing fits standard drive bays while providing protection against physical damage and EMI interference.
Technical Specifications
Data Interface (7-pin)
Pin Signal Definition
1 GND Ground Grounding, usually connected to the negative pole
2 A+ Transmit Positive signal interface for data transmission
3 A- Transmit Data transmission negative signal interface
4 GND Ground Grounding, usually connected to the negative pole
5 B- Receive Data receiving negative signal interface
6 B+ Receive Data receiving positive signal interface
7 GND Ground Grounding, usually connected to the negative pole
Power Interface (15-pin)
Pin Signal Line Color Definition
1 +3.3VDC Orange DC 3.3V positive power supply pin
2 +3.3VDC Orange DC 3.3V positive power supply pin
3 +3.3VDC Orange DC 3.3V positive power pin, pre charged
4 GND Black Grounding, paired with the first circuit
5 GND Black Grounding, paired with the second circuit
6 GND Black Grounding, paired with the third circuit
7 +5VDC Red DC 5V positive power pin, pre charged
8 +5VDC Red DC 5V positive power supply pin
9 +5VDC Red DC 5V positive power supply pin
10 GND Black Grounding, paired with the second circuit
11 Optional Black Reserved pins
12 GND Black Grounding, paired with the first circuit
13 +12VDC Yellow DC 12V positive power pin, pre charged
14 +12VDC Yellow DC 12V positive power supply pin
15 +12VDC Yellow DC 12V positive power supply pin
Package Contents
  • 1 x PCBA Adapter
  • 1 x Screw Driver
  • 4 x M2 Silver Screws
  • 4 x M2 Black Screws
  • 1 x Standoff
2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 2 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 3 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 4 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 5 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 6 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 7 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 8 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 9 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 10 2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure 11
