52mm 24P Power Supply Breakout Adapter Power Plug Mainboard Motherboard Power Connector
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | ZYX251 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| ماركة: | BQZYX | اسم المنتج: | ATX24PINمحول |
|---|---|---|---|

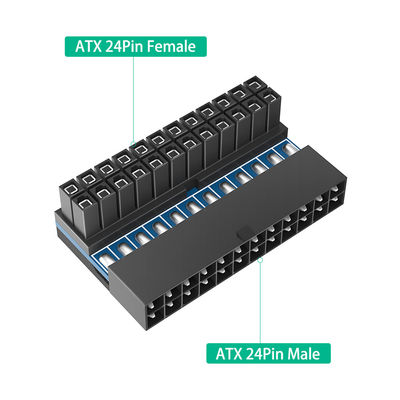

| الموصل: | USB 24pin أنثى | الموصل الآخر: | USB 24pin ذكر |
| حجم المنتج: | الطول: 52 مم العرض: 30 مم الطول: 18 مم | لون ثنائي الفينيل متعدد الكلور: | 1. أزرق |
| اتجاه: | بطاقة محول 90 درجة | دور: | نقل، تنظيم الكابلات، وتحسين المساحة |
| إبراز: | 52mm Power Supply Breakout Adapter,24P Power Supply Breakout Adapter,24P Power Plug Adapter,24P Power Supply Breakout Adapter,24P Power Plug Adapter |
||
منتوج وصف

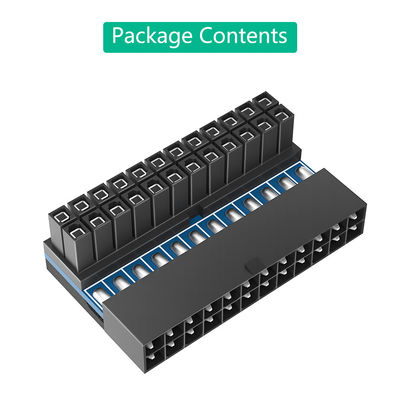

52mm 24P Power Supply Breakout Adapter

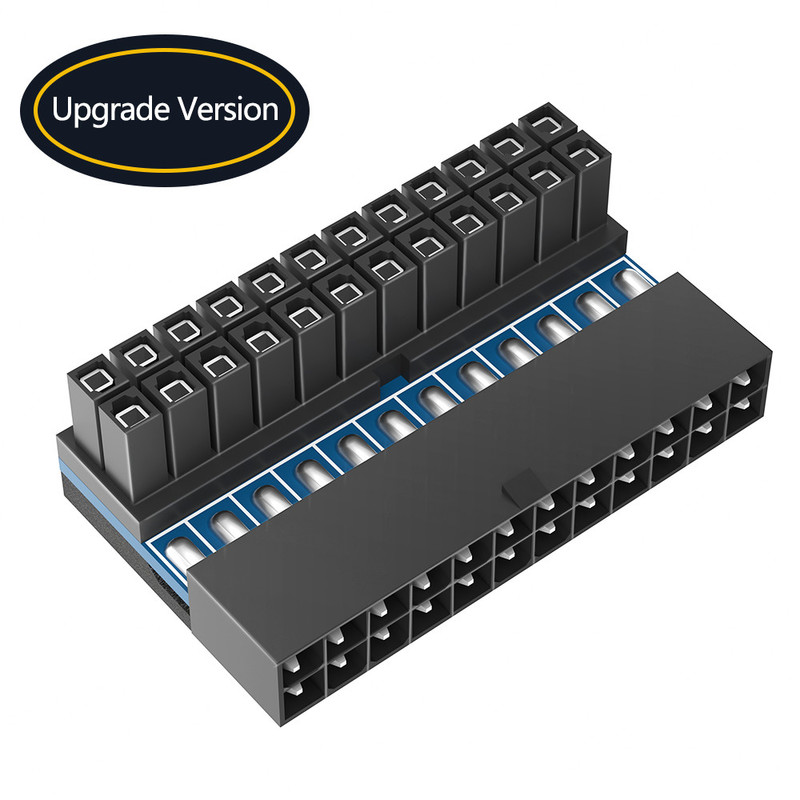

ATX 24Pin 90 Degree Power Plug Adapter for Motherboard Power Connectors
This innovative 90-degree ATX24pin power adapter transforms vertical power cord connections into parallel connections, solving space constraints in compact computer cases while improving cable management and connection stability.

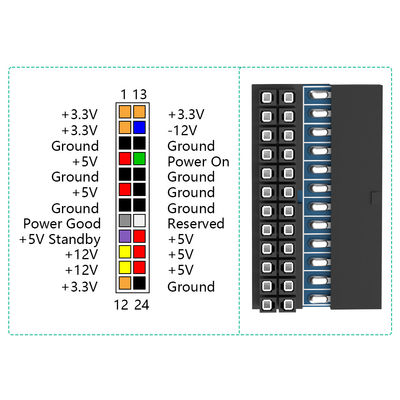

Pin Assignment
| PIN | SIGNAL | PIN | SIGNAL |
|---|---|---|---|
| 1 | +3.3V | 13 | +3.3V |
| 2 | +3.3V | 14 | -12V |
| 3 | Ground | 15 | Ground |
| 4 | +5V | 16 | Power On |
| 5 | Ground | 17 | Ground |
| 6 | +5V | 18 | Ground |
| 7 | Ground | 19 | Ground |
| 8 | Power Good | 20 | Reserved |
| 9 | +5V Standby | 21 | +5V |
| 10 | +12V | 22 | +5V |
| 11 | +12V | 23 | +5V |
| 12 | +3.3V | 24 | Ground |
Key Features
- 90° Angle Design: Converts vertical ATX24pin connections to horizontal orientation for space-constrained cases
- Space Optimization: Solves clearance issues when motherboard power ports are obstructed by case structures
- Protective Back Foam: EVA foam backing prevents wear on components and reduces vibration
- Enhanced Stability: Secures power connection more effectively than vertical plug orientation
- Improved Cable Management: Creates cleaner case interior with better airflow and aesthetics
Technical Specifications
• PCB Color: Blue
• Backing Material: Black EVA foam

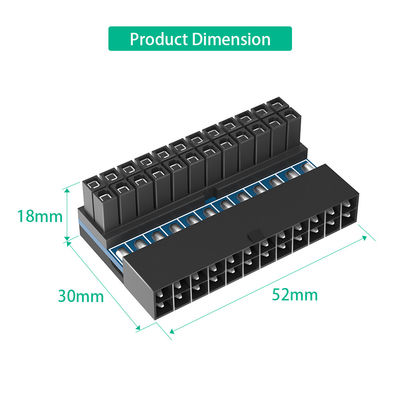

• Dimensions: 52×18×33mm (L×W×H)
• Compatibility: Standard ATX 24-pin power connectors

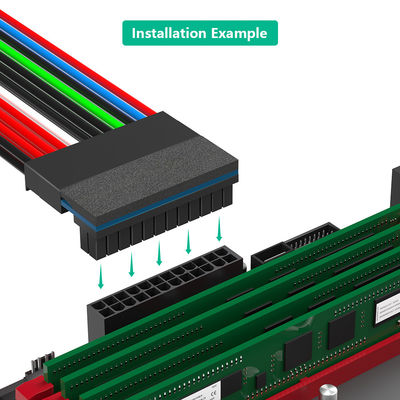

Application Scenarios
Ideal for small form factor cases, unique case designs, and users prioritizing clean cable management. Particularly valuable when:
- Case clearance prevents direct vertical power cable connection
- Optimizing internal space for improved airflow is required
- Creating professional-looking cable management is desired
