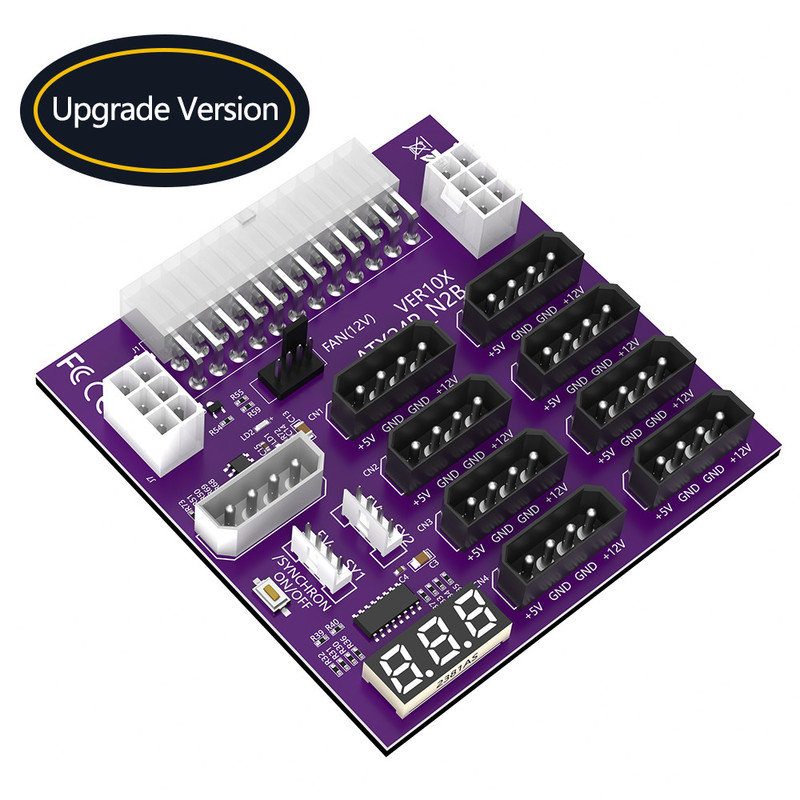

Computer Power 24Pin Supply Breakout Adapter 8X Server Power Supply Breakout Board
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 242 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | BQZYX | مادة: | PCB |
|---|---|---|---|
| يكتب: | لوحة توصيل PSU | تطبيق: | حاسوب |
| لون: | أرجواني | طاقة الإخراج: | 5 فولت / 12 فولت |
| الاستخدام: | لطاقة القرص الصلب CHIA | واجهة PSU: | ATX 24 دبوس |

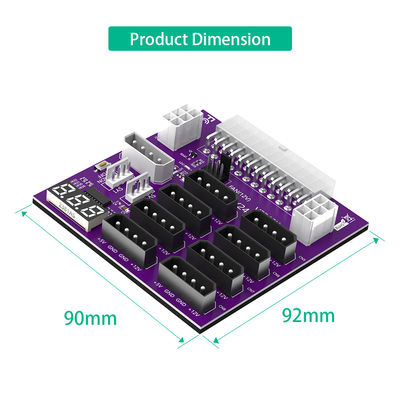

| حجم المنتج: | 92*90 مم | خاصية: | مفتاح مستقل لوحة تنظيم الضغط ATX |
| إبراز: | Computer Power Power Supply Breakout Adapter,24Pin Power Supply Breakout Adapter,24Pin server power supply breakout board,24Pin Power Supply Breakout Adapter,24Pin server power supply breakout board |
||
منتوج وصف
Computer Power 24Pin Supply Breakout Adapter 8X Server Power Supply Breakout Board
Product Description

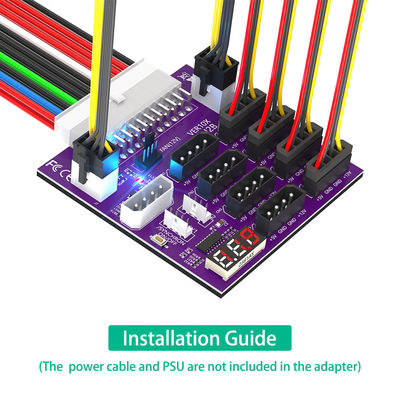

Computer Power Supply ATX 24Pin to 8 x IDE Molex 4Pin and 2 ATX 6Pin Power Connector Breakout Board for CHIA Hard Disk.
Product Specifications
- Compatible with ATX Power supply only
- Converts to 8 PCS 4pin power for 2.5/3.5 SATA HDD and ATX 6Pin power connector for VGA card
- Maximum support to 800W power supply
- LED voltage display shows main PSU voltage in real time
- Designed for connecting interconnect cables between multiple PSUs
- Output Power: 5V/12V
- PCB Color: Purple
Product Overview

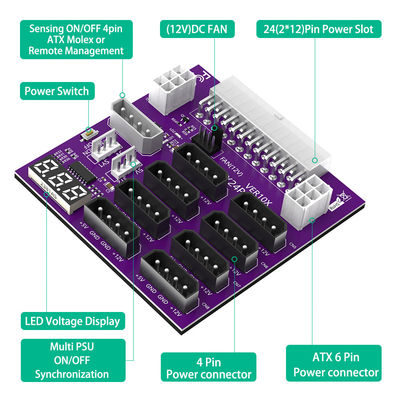

This ATX24pin power adapter board is a highly integrated power conversion device featuring:
- ATX24pin power input interface
- 8 large 4PIN connectors
- 2 ATX6Pin power interfaces
- 1 (12V) fan small 4PIN power interface
- 2 small 4PIN power synchronization interfaces
- 1 induction on/off large 4PIN interface
- LED voltage display switch
- Separate power switch
Pin Assignment
| PIN | SIGNAL | PIN | SIGNAL |
|---|---|---|---|
| 1 | +3.3V | 13 | +3.3V |
| 2 | +3.3V | 14 | -12 |
| 3 | Ground | 15 | Ground |
| 4 | +5V | 16 | Power On |
| 5 | Ground | 17 | Ground |
| 6 | +5V | 18 | Ground |
| 7 | Ground | 19 | Ground |
| 8 | Power Good | 20 | Reserved |
| 9 | +5V Standby | 21 | +5V |
| 10 | +12V | 22 | +5V |
| 11 | +12V | 23 | +5V |
| 12 | +3.3V | 24 | Ground |
Key Features
- Multiple ATX power interface configurations: 8 large 4PIN, 2 ATX6Pin, fan 4PIN, and sync interfaces
- Real-time voltage monitoring: LED display shows current voltage values
- Convenient control: Separate power switch for easy operation
- High-quality construction: Durable materials and precise engineering
- Expanded functionality: Remote management via induction on/off interface

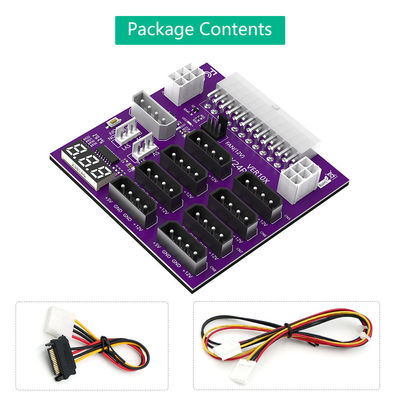

Package Contents
- 1 x Board Adapter (Not including power cable)
- 1 x 4Pin Cable
- 1 x SATA to Molex 4Pin Cable
