ATX 24PIN To 17 x 12V PCI-E 6Pin Connector Breakout Board Support Max 800W Computer Power Supply
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 243 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | BQZYX | يكتب: | لوحة توصيل PSU ATX |
|---|---|---|---|
| طَرد: | حقيبة PE | مادة: | PCBA |
| تطبيق: | مصدر طاقة ATX | واجهة: | ATX 6 دبابيس |
| كمية PCI-E: | 17 جهاز كمبيوتر | طاقة الإخراج: | 12 فولت |
| لون: | أرجواني | حالة: | تم اختباره و يعمل بنسبة 100% |
| إبراز: | Bitcoin ATX Power Supply Breakout Board,ETH ATX Power Supply Breakout Board,PCBA ATX Power Supply Breakout Board,ETH ATX Power Supply Breakout Board,PCBA ATX Power Supply Breakout Board |
||
منتوج وصف
- Power Supply Breakout Board Adapter for ETH/Bitcoin mining
- 12V Output Power with 800W maximum support

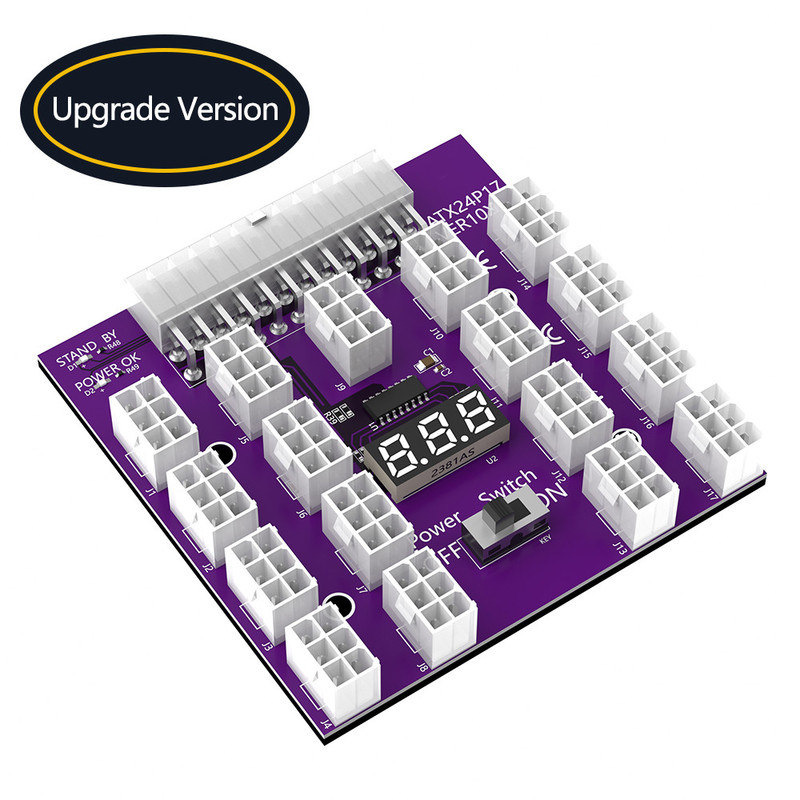

- Purple PCB with LED voltage display
- 17 ATX 6-pin power interfaces for mining graphics cards
- Compatible with ATX power supplies only

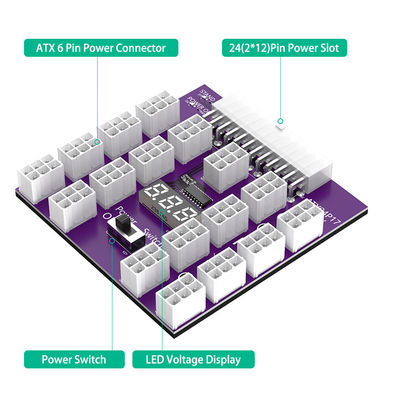

This ATX power adapter board is designed to meet the power demands of modern high-performance devices. It features an ATX24pin input interface and 17 ATX 6-pin output interfaces, functioning as a power distribution hub for graphics cards and other high-performance components. With support for up to 800W power delivery, integrated LED voltage display, status indicators, independent switch, and bottom insulation foam, it ensures convenient, stable, and safe power distribution for high-performance computer systems.
| PIN | SIGNAL | PIN | SIGNAL |
|---|---|---|---|
| 1 | +3.3V | 13 | +3.3V |
| 2 | +3.3V | 14 | -12 |
| 3 | Ground | 15 | Ground |
| 4 | +5V | 16 | Power On |
| 5 | Ground | 17 | Ground |
| 6 | +5V | 18 | Ground |
| 7 | Ground | 19 | Ground |
| 8 | Power Good | 20 | Reserved |
| 9 | +5V Standby | 21 | +5V |
| 10 | +12V | 22 | +5V |
| 11 | +12V | 23 | +5V |
| 12 | +3.3V | 24 | Ground |
17 ATX6pin power interfaces provide ample connectivity for multiple high-performance devices, solving the problem of insufficient traditional power interfaces in multi-GPU setups.
800W power support ensures stable operation of high-end graphics cards during intensive tasks like 4K/8K rendering and professional computing workloads.
Integrated LED display shows PSU voltage in real time, allowing users to monitor power stability during critical operations.

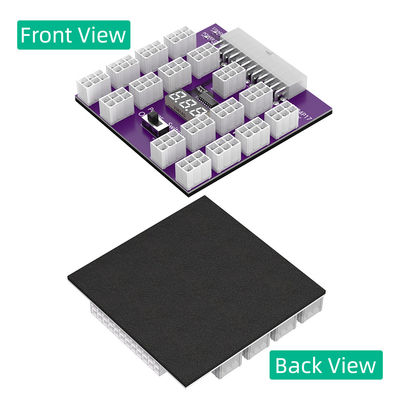

Includes status indicators, independent power switch, and bottom insulation foam for comprehensive protection against electrical hazards.
- Open computer case and select installation location
- Connect ATX24pin interface to power supply
- Connect devices using appropriate power cables
- Verify standby indicator light and voltage display
- Monitor power status during operation
- Multi-GPU gaming systems
- Professional graphic design workstations
- Deep learning computing clusters
- Cryptocurrency mining rigs

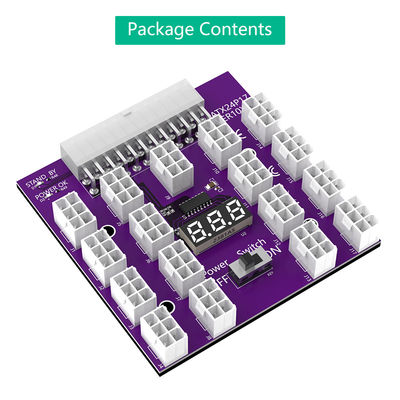

- 1 x Board Adapter (ATX 2*3Pin power cable not included)
