ATX Power Supply Breakout Board and Acrylic Case Kit with ADJ Adjustable Voltage Knob
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي واي اكس 150 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | لوحة منظم الطاقة ATX24Pin | يكتب: | لوحة توصيل PSU |
|---|---|---|---|
| مادة: | PCBA | واجهة الإدخال: | ATX 24 دبوس |
| واجهة الإخراج 1: | 3.3 فولت (مفتاح مستقل يعمل باللمس) | واجهة الإخراج 2: | 5 فولت ((مفتاح مستقل عن اللمس) |
| واجهة الإخراج 3: | 12 فولت (مفتاح مستقل يعمل باللمس) | واجهة الإخراج 4: | 1.8 فولت - 10.8 فولت (ADJ) (تنظيم جهد الدوران) |
| واجهة الإخراج 5: | يو اس بي 2.0 (5 فولت) | خصائص المنتج: | مصدر طاقة مستقل |
| ميزات المنتج2: | شاشة عرض تنظيم الطاقة | لون المنتج: | أحمر |
| إبراز: | ATX Power Supply Breakout Board Kit,ATX Power Supply Breakout Board,ADJ Adjustable Voltage Knob Breakout Board,ATX Power Supply Breakout Board,ADJ Adjustable Voltage Knob Breakout Board |
||
منتوج وصف

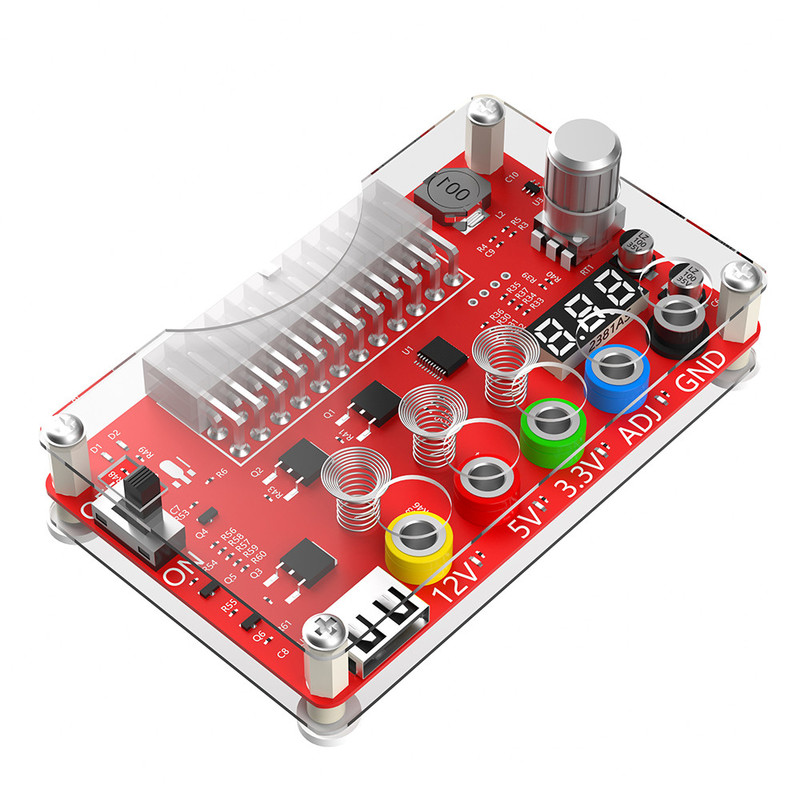

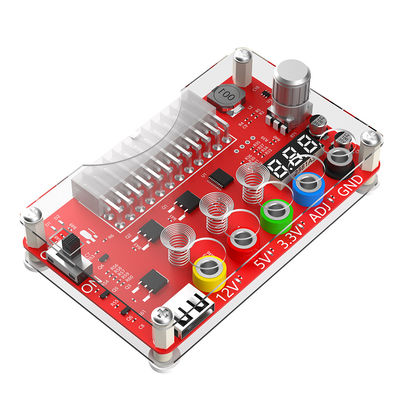

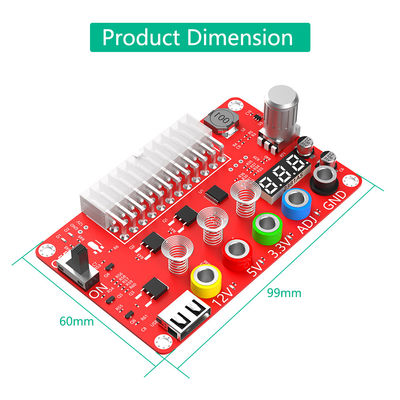

ATX Power Supply Breakout Board and Acrylic Case Kit with ADJ Adjustable Voltage Knob
This high-performance voltage regulator is specifically designed for computer ATX power supplies, offering powerful and flexible voltage regulation capabilities to meet diverse voltage needs in various computer hardware applications.
Key Features

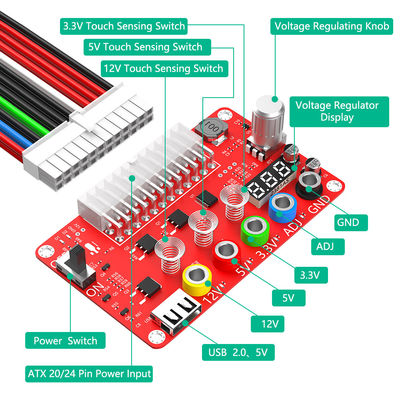

- ATX power supply breakout board with ADJ adjustable voltage knob (1.8V-10.8V range)
- Supports 3.3V, 5V, and 12V output voltages with screw terminals

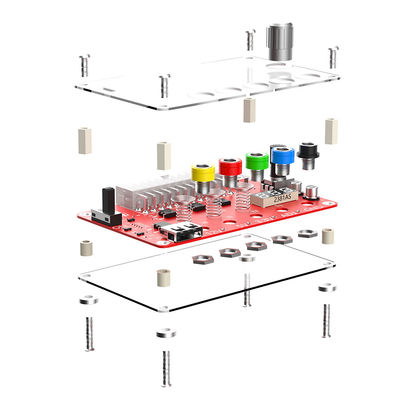

- Includes acrylic case kit for protection and easy use
- Intuitive voltage display screen for real-time monitoring

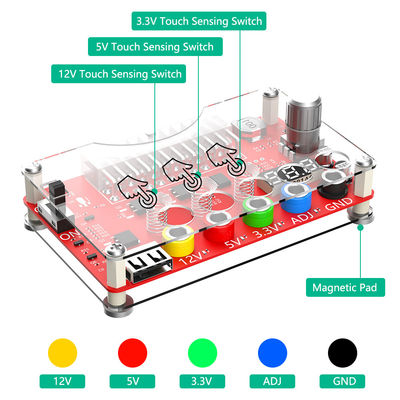

- Independent touch switches for each voltage output
- Additional USB 2.0 interface for charging/data transfer
- Master power switch for complete system control
Compatibility
- 3.3V: STM32 MCU, Wi-Fi/Bluetooth modules, low-power devices
- 5V: Raspberry Pi, Banana Pi, USB devices, single-board computers
- 9V: Arduino, motor drives, display modules
- 12V: Motor drives, LED lighting, vehicle equipment (under 24W)
Pin Assignment
| PIN | SIGNAL | PIN | SIGNAL |
|---|---|---|---|
| 1 | +3.3V | 13 | +3.3V |
| 2 | +3.3V | 14 | -12V |
| 3 | Ground | 15 | Ground |
| 4 | +5V | 16 | Power On |
| 5 | Ground | 17 | Ground |
| 6 | +5V | 18 | Ground |
| 7 | Ground | 19 | Ground |
| 8 | Power Good | 20 | Reserved |
| 9 | +5V Standby | 21 | +5V |
| 10 | +12V | 22 | +5V |
| 11 | +12V | 23 | +5V |
| 12 | +3.3V | 24 | Ground |
Technical Advantages
Precise Voltage Control
Adjustable voltage from 1.8V to 10.8V via ADJ knob with real-time display for accurate power delivery to sensitive components.
Enhanced Safety Features
Independent touch switches for each voltage output prevent accidental power surges and allow selective device control.
Multi-Device Support
Simultaneously power multiple devices with different voltage requirements through dedicated 3.3V, 5V, and 12V outputs.

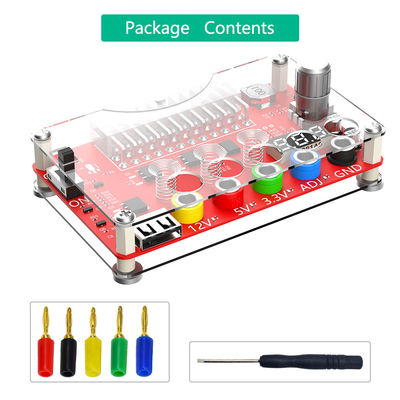

Package Contents
- 1 × ATX Power Supply Breakout Board
- 5 × Male Banana Plugs
- 1 × Screwdriver

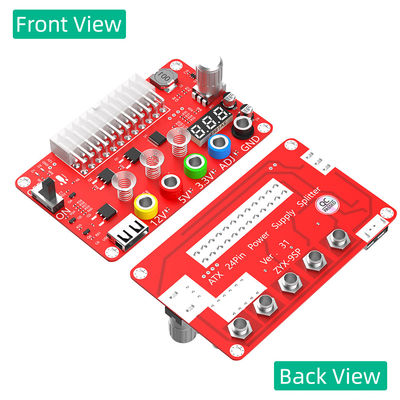

Product Images
