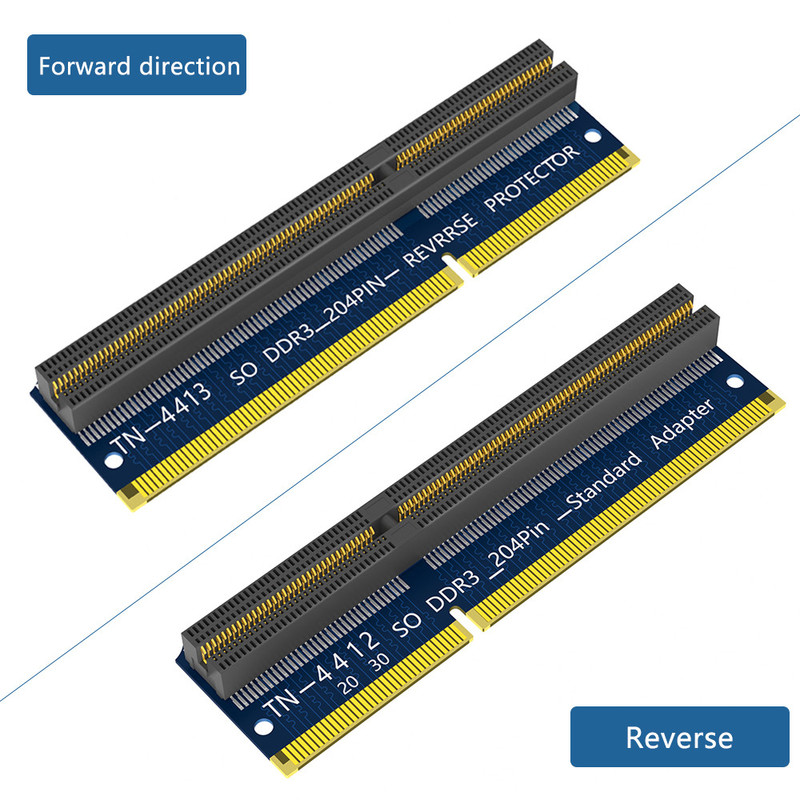

STD 204Pin DDR Memory Adapter DDR3 Memory Adapter 1.5V DC.

Standard SO-DIMM 204PIN DDR3 Memory Test Protection Adapter For STD 204Pin Slot.

• SO-DIMM DDR3 memory test protection card
• Suitable for SO DDR3 memory card of notebook PC
• Working voltage: 1.5V DC
• No additional driver needed
• 4-Layers PCB design for reducing signal loss and EMI

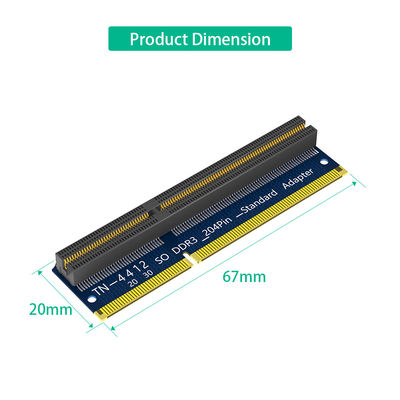

• Product Dimension: 67x19mm

The SO-DDR3 memory module test protection card serves as both an adapter and protector for SO-DDR3 memory modules. Its precise 204Pin adapter design and four-layer PCB architecture provide efficient signal transmission while reducing EMI interference, ensuring accurate test data and protecting the memory module's gold fingers from wear during testing.

Special flexible cushioning material minimizes friction and wear on gold fingers during testing, significantly extending memory module lifespan.

Advanced PCB design with signal layer, power layer, shielding layer, and auxiliary layer ensures stable power delivery and minimizes signal attenuation.

Micrometer-level precision manufacturing ensures perfect fit with memory module gold fingers for reliable connections.

Works with most DDR3 memory modules from different brands, capacities, and frequencies that meet DDR3 standards.

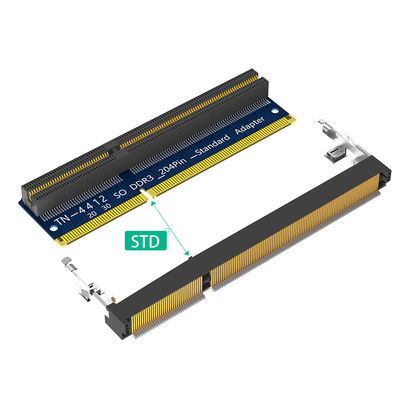

Precision 204-pin slot with gold-plated contacts and guiding rounded corners for smooth insertion. High-performance elastic buckles ensure secure module fixation.

Optimized layer structure with signal transmission layer, power regulation layer, EMI shielding layer, and auxiliary strengthening layer.

Standardized connection design with high-strength engineering plastic housing for durability and reliable connections.

• Cost Reducer: Reduces memory module wear during testing, lowering scrap rates
• Signal Quality Guardian: Maintains pure and stable DDR3 signals in test environments
• Testing Efficiency Engine: Quick installation and wide compatibility accelerate testing processes

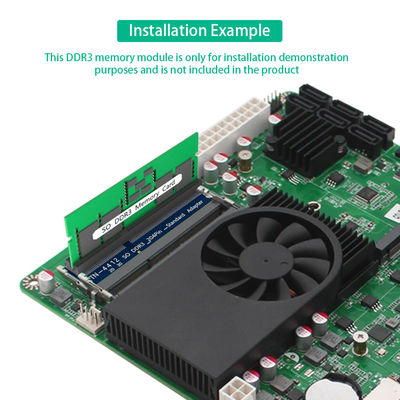

1. Align and insert adapter card into testing device
2. Insert memory module into adapter slot
3. Verify secure connections before testing
4. Monitor system performance during testing

• Electronic engineering research laboratories
• Computer hardware manufacturing production lines
• Memory module quality testing facilities
