288Pin Motherboards DDR Memory Adapter Test Protection Card Adapter For Desktop
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 245 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | BQZYX | اسم المنتج: | بطاقة حماية اختبار وحدة الذاكرة DDR4 |
|---|---|---|---|
| يكتب: | بطاقة المحول | المعدات المعمول بها: | وحدة ذاكرة DDR4 |
| مادة: | PCBA | واجهة: | ذاكرة DDR4 288 دبوس |
| تطبيق: | سطح المكتب | لون: | أزرق |
| سمك طلاء الذهب: | 3U | جهد العمل: | 1.2 فولت تيار مستمر |
| ميزة: | لا حاجة إلى برنامج تشغيل إضافي. | الطريقة الثابتة: | تثبيت مشبك الأذن |
| إبراز: | Motherboards DDR Memory Adapter,288Pin DDR Memory Adapter,DDR4 Memory Adapter For Desktop,288Pin DDR Memory Adapter,DDR4 Memory Adapter For Desktop |
||
منتوج وصف

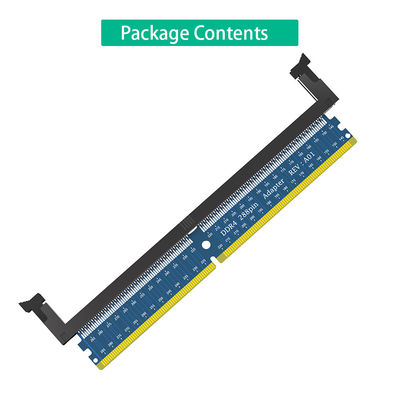

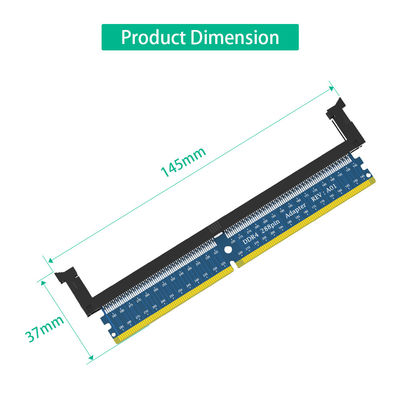

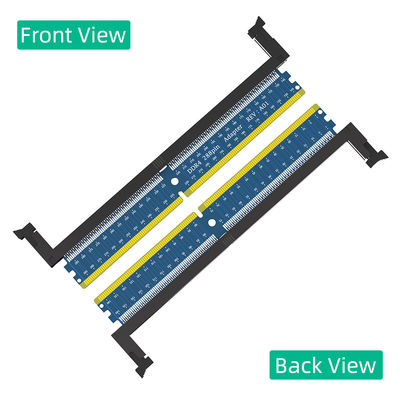

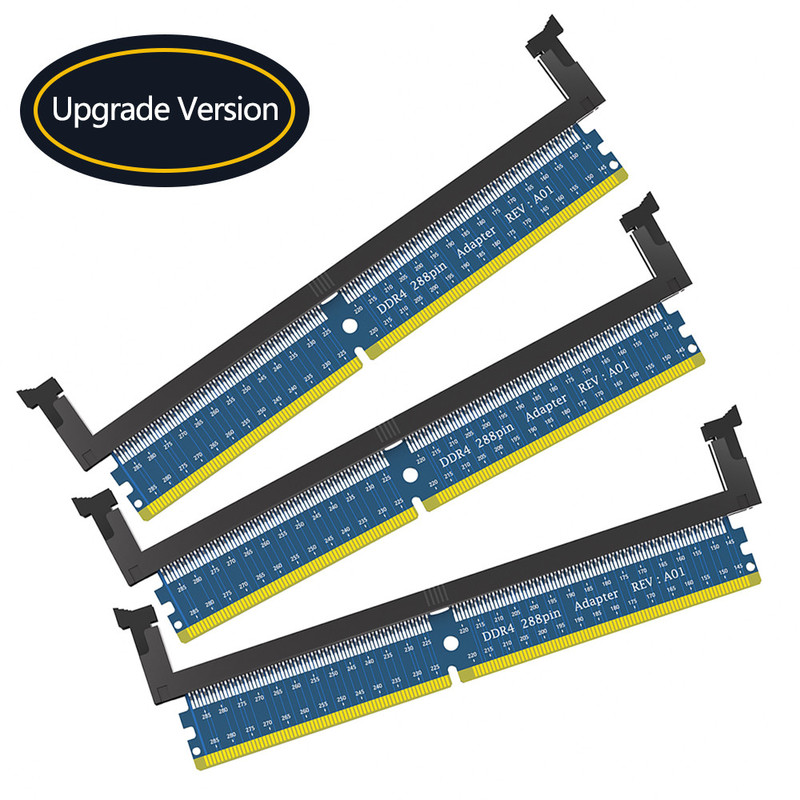

288Pin DDR4 Memory Test Protection Card Adapter
This desktop DDR4 memory module test protection card is a key tool for ensuring stable operation and efficient testing of memory modules. It combines testing and protection functions with a unique DDR4 288PIN slot and gold finger design, accurately adapting to desktop DDR4 memory modules.
Product Specifications:
- Desktop DDR4 (288pin / 1.2v) memory test protection card
- Suitable for DDR4 memory card of desktop PC
- Working voltage: 1.2V DC
- No additional driver needed
- 4-Layers PCB design for reducing signal loss and EMI
Key Features
Precision Adaptation

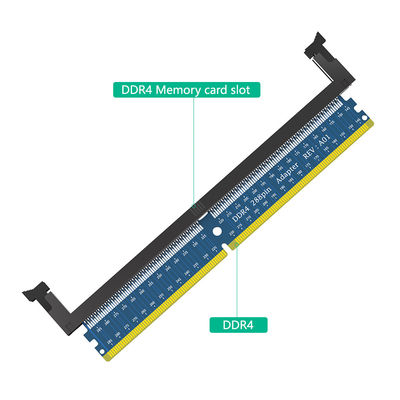

The 288PIN slot and gold finger strictly follow DDR4 standards, ensuring tight fit and contact when inserting memory modules. Achieves seamless connection for both high-frequency and standard memory modules.
Secure Ear Clip Design
Two ear buckles automatically grip memory modules with just-right elasticity, preventing loosening during operation and reducing crashes or blue screens caused by loose connections.
No Additional Power Required
Operates without external power source, simplifying testing and installation processes for both professionals and DIY enthusiasts.
4-Layer PCB Optimization
Multi-layer structure reduces signal interference and EMI, improving memory read/write speed and system stability during high-load operations.
Technical Specifications
| Pin Group | Components |
|---|---|
| Main Power Pins (3) | VDD, VDDQ, VPP, VREF |
| Control Signal Pins (35) | 10 address signal pins, 18 timing signal pins, 7 other control signal pins |
| Data Signal Pins (60) | 45 data input/output pins, 15 data mask pins |
| Ground Wires (15) | Signal grounding |
| DDR4 Auxiliary Pins | 10 auxiliary power pins, 8 extended timing signal pins, 26 status detection pins, 4 temperature sensor pins, 5 reserved pins |

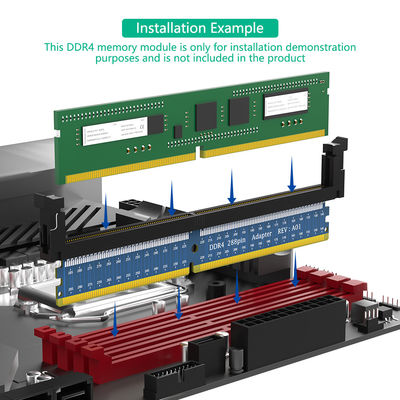

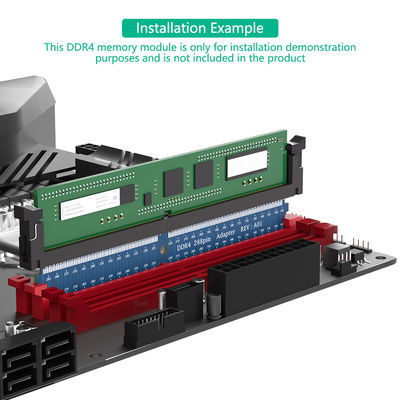

Installation & Usage
- Open computer case and select location near motherboard memory slot
- Align gold fingers with motherboard slot and insert until hearing "click"
- Insert DDR4 memory module into adapter slot until ear clips fasten
- Check all connections for tightness before powering on
- Monitor system performance and memory module status during operation
Product Images
