M.2 NVMe SSD NGFF TO PCIE X1 adapter card M Key interface card Support PCI Express 3.0 x1 Support NVMe SSD 2230-2242-2260-2280 Size
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 243 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | محول NGFF (M.2) Key-M إلى PCI-E 1X | نوع واجهة SSD: | NGFF (M.2) مفتاح-M |
|---|---|---|---|
| اتفاقية الدعم: | إن في إم إي إس إس دي | حجم الدعم: | 22*30 مم 22*42 مم 22*60 مم 22*80 مم |
| نوع الحافلة: | بي سي اي اكسبرس 3.0x1 | دعم فتحة PCI-e: | متوافق مع فتحة PCI-E X4، X8، X16 |
| ميزة 1: | محول SSD PCI-e | ميزة 2: | محول M.2 SSD PCI-e |
| ميزة 3: | مكيّف SSD PCI-e | ميزة 4: | محول M2 اس اس دي |
| ميزة 5: | محول SSD m.2 | ميزة 6: | PCI-e اكسبرس m.2 |
| ميزة 7: | محول PCI-E | ميزة 8: | محول M.2 NGFF |
| ميزة 9: | M.2 PCI-e NVMe | ميزة 10: | محول M.2 PCI-e |
| إبراز: | NGFF TO PCIE X1 Adapter Card,M.2 NVMe SSD Adapter Card,PCIE X1 Adapter Card,M.2 NVMe SSD Adapter Card,PCIE X1 Adapter Card |
||
منتوج وصف
M.2 NVMe SSD NGFF TO PCIE X1 Adapter Card
M Key interface card supporting PCI Express 3.0 x1 and NVMe SSD sizes 2230/2242/2260/2280.
Product Specifications
Name: PCIE 3.0 X4 NVMe Expansion Riser
Support: NVMe m.2 SSD (various PCIE protocols)
Not support: m.2 NGFF disk (SATA protocol)
Slot: PCIE X1 X4 X8 X16
Key Features
- High-speed signal enhancement technology
- PCIE3.0 GEN3 full speed design
- No lag, motherboard self-test without delay
- Large capacity tantalum capacitor for constant voltage filtering
Package Contents
- M.2 NVMe SSD NGFF TO PCIE X1 adapter card
- 2x M.2 screws
- 1x metal profile bracket
- 1x screwdriver
- 1x metal profile bracket screw
PCI Express Performance
| Version | Coding scheme | Transfer rate | Throughput |
|---|---|---|---|
| 1.0 | 8b/10b | 2.5 GT/s | 250MB/s |
| 2.0 | 8b/10b | 5 GT/s | 500MB/s |
| 3.0 | 128b/130b | 8 GT/s | 984.6MB/s |
Technical Advantages
Wide SSD Size Compatibility
Supports NVME protocol KEY-M SSDs in four size formats: 2230mm, 2242mm, 2260mm, and 2280mm, accommodating various device requirements from compact laptops to workstations.
High Performance Output Interface
PCI-E 3.0 1X Gold Finger interface with theoretical bandwidth up to 8Gbps, ensuring stable signal transmission and strong anti-interference capability.
Multi Slot Compatibility
Adapts to PCI-e 1X, 4X, 8X, and 16X slots on motherboards, providing flexible upgrade options for various system configurations.
Status Indicator Function
LED indicator lights provide real-time feedback on data transmission status and device connection status, simplifying troubleshooting.
Key Interfaces
NVMe Protocol
High-performance storage protocol with lower latency and higher IOPS compared to traditional AHCI protocol, significantly improving SSD read/write performance.
NGFF (M.2) Key-M Slot
Compact interface solution designed specifically for NVME protocol SSDs, combining small size with high transmission speed.
PCI-E 3.0 1X
Third-generation high-speed serial computer expansion bus standard providing physical channel support for high-speed SSD data transmission.
Application Scenarios
- Workstations and servers: Efficient support for large-scale data processing and storage
- Creative design work: Accelerates video editing and 3D modeling workflows
- Gaming: Reduces game loading times and improves overall performance

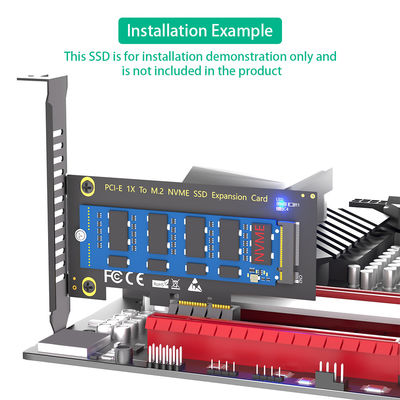

Product Images
Product Summary
Our NVME protocol SSD adapter provides a professional storage expansion solution with excellent design, wide compatibility, and outstanding performance. Ideal for both professional data processing and high-performance computing needs.
