M2 PCI E Adapter Pcie X4 SSD NVMe Adapter X8 X16
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 157 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | NGFF (M.2) KEY-M إلى محول بطاقة التوسعة PCI-E | فتحة SSD: | NGFF (M.2) مفتاح-M |
|---|---|---|---|
| دعم حجم SSD 1: | 22*30 (NVME SSD) | دعم حجم SSD 2: | 22*42 (NVME SSD) |
| دعم حجم SSD 3: | 22*60 (NVME SSD) | دعم حجم SSD 4: | 22*80 (NVME SSD) |
| واجهة الإخراج: | PCI-E 4X / PCI-E 8X / PXI-E16X | لون: | أسود |
| إبراز: | M2 PCI E Adapter,PCI E Adapter x8,SSD NVMe Adapter x16,PCI E Adapter x8,SSD NVMe Adapter x16 |
||
منتوج وصف
M2 PCI E Adapter Pcie X4 SSD NVMe Adapter X8 X16
NVMe Adapter M.2 PCIe SSD to PCI-e x4/x8/x16 Converter Card for M.2 (M Key) NVMe SSD 2280/2260/2242/2230.
Product Specifications
- M.2 NVMe to PCIe Adapter allows adding NVMe SSD Hard Drive to your PC Desktop at perfect performance.
- Compatible with M.2 SSDs (PCI-e NVMe): 80x22mm, 60x22mm and 42x22mm.
- Hardware Requirement: Available 4x/8x/16x Slot on Mainboard.
- Support Windows10 /Linux/ XP, no driver required.
Product Overview
This powerful and flexible SSD adapter expansion card builds a bridge between NVME protocol SSDs and PCI-E interfaces, enabling efficient storage expansion. With its NGFF (M.2) KEY-M slot, it's compatible with various NVME SSDs and adapts to PCI-E slots (4X, 8X, 16X) on motherboards. Ideal for computer assembly, server construction, and professional applications requiring high storage performance. The built-in LED indicator provides intuitive working status monitoring.
PCI Express Performance
| Edition | Line code | Transfer rate | Throughput (x1) | Throughput (x4) | Throughput (x8) | Throughput (x16) |
|---|---|---|---|---|---|---|
| 1.0 | 8b/10b | 2.5GT/S | 250MB/S | 1GB/S | 2GB/S | 4GB/S |
| 2.0 | 8b/10b | 5GT/S | 500MB/S | 2GB/S | 4GB/S | 8GB/S |
| 3.0 | 128b/130b | 8GT/S | 984.6MB/S | 3.938GB/S | 7.877GB/S | 15.754GB/S |
Key Features

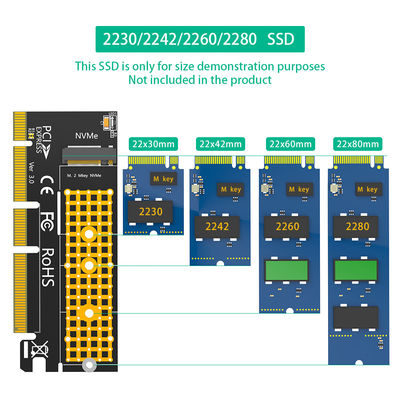

1. Multi-size SSD Compatibility
The NGFF (M.2) KEY-M slot supports 2230, 2242, 2260, and 2280mm NVME SSDs. High-precision manufacturing ensures stable connections with gold fingers, using quality metal materials to reduce contact resistance for reliable data transmission.
2. Multi-specification PCI-E Output
Supports PCI-E 4X, 8X, and 16X slots for flexible bandwidth adaptation. Perfect for both standard PC motherboards and high-performance servers, enabling optimal SSD performance for demanding applications like database operations and video rendering.
3. LED Status Indicator
The built-in LED provides real-time monitoring of SSD activity. Flashing indicates data transfer, constant light shows readiness, and abnormal patterns help identify connection issues quickly.
4. Robust Construction
High-quality materials and optimized circuit design ensure stability in intensive workloads. Durable housing protects components while enhancing heat dissipation for reliable long-term operation.
Slot and Interface Details

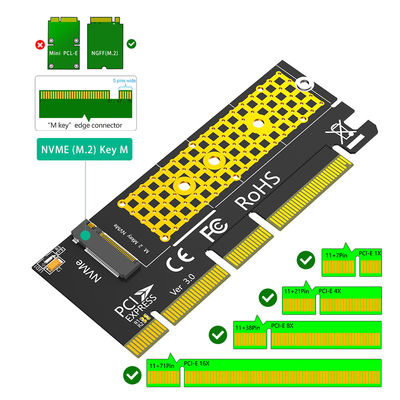

NGFF (M.2) KEY-M Slot
Precision-engineered with gold-plated contacts for excellent conductivity. Secure mounting structure prevents SSD movement during operation, ensuring stable performance.
PCI-E Output Interface
Supports 4X/8X/16X specifications with high-quality alloy connectors. Optimized pin layout and shielded design minimize electromagnetic interference for clean signal transmission.
Performance Advantages
NVME Protocol: Delivers superior parallel processing and low latency compared to traditional storage protocols.
Bandwidth Flexibility: Adapts to available motherboard slots while maximizing SSD potential.
Reliable Transmission: Optimized circuitry ensures data integrity even in demanding environments.
Bandwidth Flexibility: Adapts to available motherboard slots while maximizing SSD potential.
Reliable Transmission: Optimized circuitry ensures data integrity even in demanding environments.

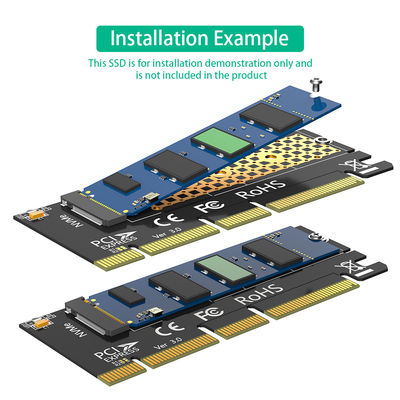

Installation Guide
- Install SSD: Align NVME SSD with M.2 slot and insert firmly until secured.

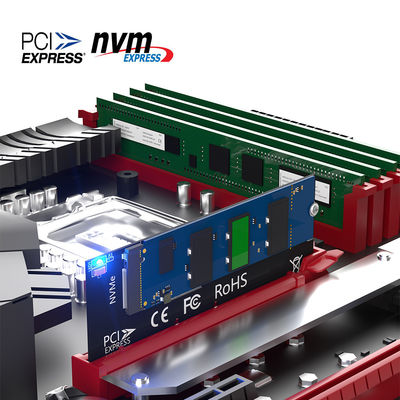

- Connect to Motherboard: Insert adapter into available PCI-E slot (4X/8X/16X) and secure properly.
- Check LED Status: Verify normal operation indicators before powering on.
- System Configuration: Initialize SSD in disk management tools (Windows/Linux).
Applications
PC Upgrades: Enhance storage performance for faster boot times and application loading.
Servers: Ideal for data centers requiring high-speed storage solutions.
Workstations: Perfect for video editing, 3D modeling, and other professional applications.
Servers: Ideal for data centers requiring high-speed storage solutions.
Workstations: Perfect for video editing, 3D modeling, and other professional applications.

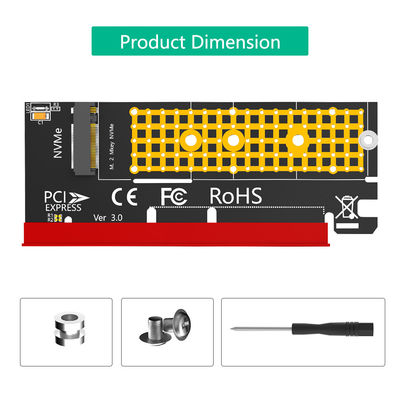

Package Contents
- 1x NVMe SSD to PCI-E Adapter
- 2x M2 Screws
- 1x Screwdriver
