52Pin MPCIe Mini PCI E Cable Wireless Adapter Card 1 SIM Slot FPC Cable For Test Wifi Module
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | زي اكس 218 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | BQZYX | يكتب: | بطاقة المحول |
|---|---|---|---|
| لون: | أخضر | يدعم: | فتحة Mini PCI-E /Msata بالحجم الكامل (30*50 مم) ونصف الحجم (30*26.8 مم) |
| واجهة: | ميني PCI-E/mSATA | مادة: | PCB+سلك نحاسي |
| موصل بطاقة SIM: | موصل بطاقة SIM 8pin | حالة: | تم اختباره و يعمل بنسبة 100% |
| تطبيق: | كمبيوتر محمول | متوافق مع: | ويندوز 10/8/7/فيستا/XP/لينكس |
| إبراز: | 52Pin MPCIe Mini PCI E Cable,linux Mini PCI E Cable,Wireless Adapter Card,linux Mini PCI E Cable,Wireless Adapter Card |
||
منتوج وصف

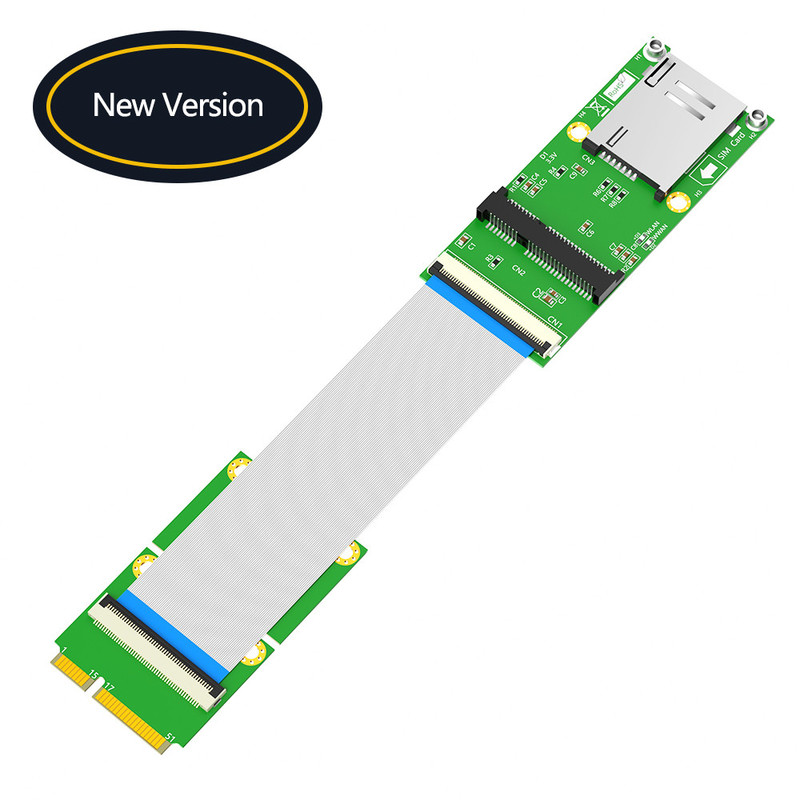

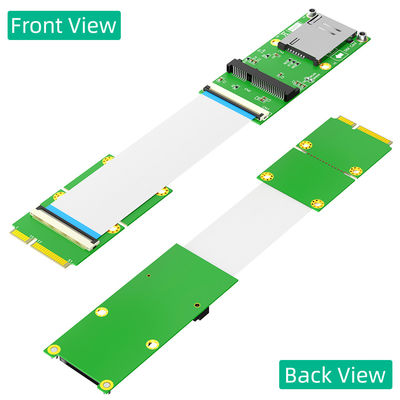

52Pin MPCIe Mini PCI E Cable Wireless Adapter Card with 1 SIM Slot FPC Cable

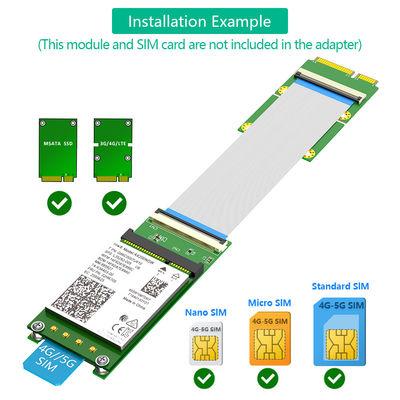

Mini PCI-E 52Pin to MPCIe wireless adapter card with 1 SIM slot FPC cable for testing WiFi modules or 3G/4G LTE WWAN modems. This versatile extender cable supports both Mini PCI-E cards and mSATA SSDs, making it an essential tool for engineers and factory testing.
Key Features

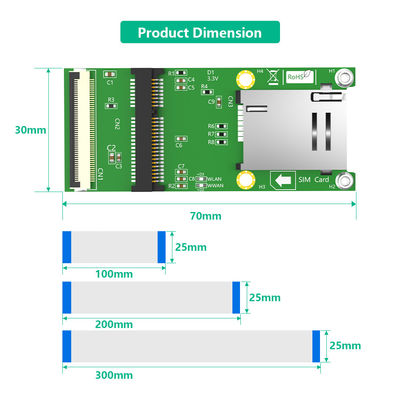

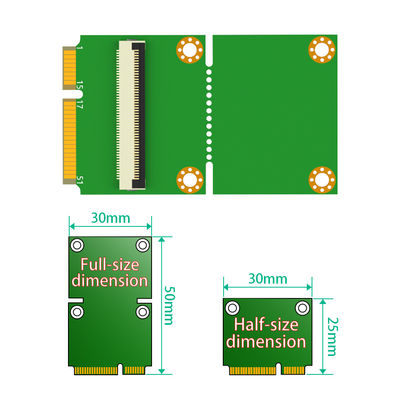

- Supports both Full-size (30×50mm) and half-size (30×26.8mm) Mini PCI-E/mSATA slots
- Compatible with multiple operating systems including Windows XP/7/8/10, WinCE & Linux
- High-quality connectors ensure long service life and reliability
- No additional power required
- Includes SIM card slot supporting Nano, Micro, and Standard SIM sizes
- Comes with three FPC extension cables (100mm, 200mm, 300mm) for flexible installation

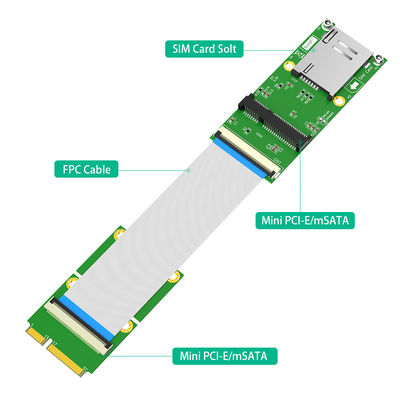

Interface Specifications
Mini PCI-E Interface
Connects devices supporting Mini PCI-E standards, providing expansion functions in space-constrained environments. Ideal for connecting wireless network cards, Bluetooth modules, and other peripherals in laptops and embedded systems.
mSATA Interface
Supports full-height and half-height mSATA drives, offering fast data transfer speeds with low power consumption. Perfect for industrial control equipment and digital systems requiring reliable storage solutions.
Interface Pin Definitions
| Mini PCI-e | mSATA | ||
|---|---|---|---|
| Pin number | Signal name | Pin number | Signal name |
| 1 | WAKE | 1 | NC(Undefined) |
| 2 | 3.3V | 2 | 3.3V |
| 3 | RESEVED | 3 | NC(Undefined) |
| 4 | GND | 4 | GND |
| 5 | RESERVED | 5 | NC(Undefined) |
| 6 | 1.5V | 6 | NC(Undefined) |
| 7 | CLKREQ | 7 | NC(Undefined) |
| 8 | RESERVED | 8 | NC(Undefined) |
| 9 | GND | 9 | GND |
| 10 | RESERVED | 10 | NC(Undefined) |
| 11 | REFCLK- | 11 | NC(Undefined) |
| 12 | RESERVED | 12 | NC(Undefined) |
| 13 | REFCL+ | 13 | NC(Undefined) |
| 14 | RESERVED | 14 | NC(Undefined) |
| 15 | GND | 15 | GND |
| 16 | RESERVED | 16 | NC(Undefined) |
| 17 | RESERVED | 17 | NC(Undefined) |
| 18 | GND | 18 | GND |
| 19 | RESERVED | 19 | NC(Undefined) |
| 20 | RESERVED | 20 | NC(Undefined) |
| 21 | GND | 21 | GND |
| 22 | PERST | 22 | NC(Undefined) |
| 23 | PERPO(RXN) | 23 | TX+ |
| 24 | 3.3V | 24 | 3.3V |
| 25 | PERNO(RXP) | 25 | TX- |
| 26 | GND | 26 | GND |
| 27 | GND | 27 | GND |
| 28 | 1.5V | 28 | NC(Undefined) |
| 29 | GND | 29 | GND |
| 30 | SMB_CLK | 30 | NC(Undefined) |
| 31 | PETRO(TXN) | 31 | RX- |
| 32 | SMB_DATA | 32 | NC(Undefined) |
| 33 | PETPO(TXP) | 33 | RX+ |
| 34 | GND | 34 | GND |
| 35 | GND | 35 | GND |
| 36 | USB_D- | 36 | RESERVED |
| 37 | GND | 37 | GND |
| 38 | USB_D+ | 38 | RESERVED |
| 39 | 3.3V | 39 | 3.3V |
| 40 | GND | 40 | GND |
| 41 | 3.3V | 41 | 3.3V |
| 42 | LED_WWAN | 42 | NC(Undefined) |
| 43 | GND | 43 | GND |
| 44 | LED_WWAN | 44 | NC(Undefined) |
| 45 | RESERVED | 45 | RESERVED |
| 46 | LED_WPAN | 46 | NC(Undefined) |
| 47 | RESERVED | 47 | RESERVED |
| 48 | 1.5V | 48 | NC(Undefined) |
| 49 | RESERVED | 49 | DA/DSS |
| 50 | GND | 50 | GND |
| 51 | RESERVED | 51 | Presence Detection |
| 52 | 3.3V | 52 | 3.3V |
Product Advantages
- Multi-functional adapter: Enables conversion between Mini PCI-E and mSATA interfaces with SIM card support
- Strong compatibility: Works with various devices supporting Mini PCI-E/mSATA standards
- Compact design: Small form factor for easy portability and installation
- Reliable performance: High-quality materials ensure stable data transmission

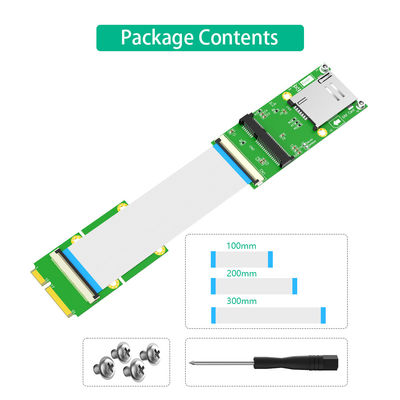

Package Contents
- 1× Mini PCI-E/mSATA Flexible Extender cable
- 1× Screw Driver
- 4× M2 Screw
- 1× MiniCard Extender Bracket
- 3× FPC cable (Length: 10/20/30cm)
Product Images
