M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD

M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD

Product Details:

Place of Origin: Guangdong, China
Brand Name: BQZYX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $7.30-9.90
Get Best Price Contact Now

Detail Information
Interface Type: Mini PCI-E/mSATA SSD Support: M.2 Socket 3 PCI-e-based M Key 2280 SSD (Mini PCI-E Mode), M.2 SATA Bus B+M Key SSD (Msata Mode)

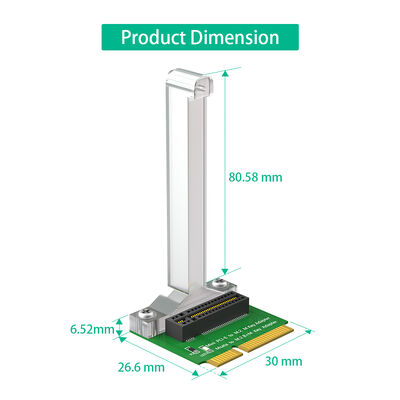

Speed: 1X Speed (Mini PCI-E Mode) Dimensions: 160*90*30
Installation Type: Vertical Installation Slot Requirement: Half Size (26.80x30mm) Or Full Size (50.95x30mm) Mini PCI-e/msata Slot
Material: Plastic Support Frame, Metal Bracket Included Components: 1x Adapter, 1x Plastic Frame, 1x Metal Bracket, 4x M2 Screws, 1x Screwdriver, 1x Manual
SSD Type: 2280 Type Key Type: B+M Key
Bus Type: SATA Bus Compatibility: M.2 NGFF Nvme SSD
Model Number: HL-0019102901 Color: Green
Product Status: Stock
Highlight:

Vertical Installation M.2 NGFF Adapter

,

B+M Key SATA Bus SSD Mini PCI-E Adapter

,

2280 Type SSD M.2 to Mini PCI-E Adapter

Product Description

M.2 NGFF NVMe SSD / B+M Key SATA Bus SSD to Mini PCI-E Adapter
This vertical installation adapter is designed for 2280 type SSDs, providing reliable conversion between M.2 and Mini PCI-E interfaces with enhanced stability through its plastic support frame design.
Product Features & Compatibility

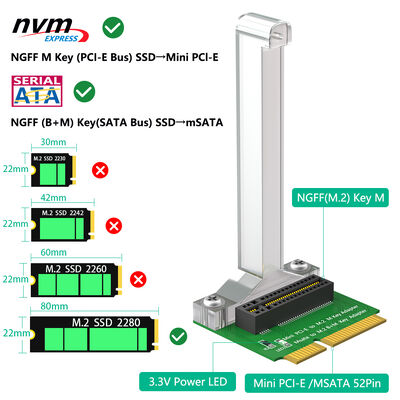

Mini PCI-E Interface Supports M.2 Socket 3 PCI-e-based M Key 2280 SSDs only. Does not support M.2 SATA bus B key SSDs. Speed limited to 1X.
mSATA Interface Supports M.2 SATA bus B+M key SSDs only. Does not support M.2 Socket 3 PCI-e-based M Key 2280 SSDs.

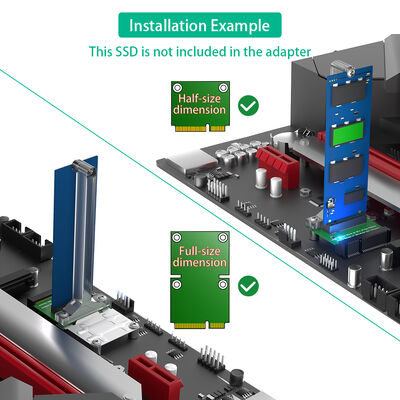

System Requirements Requires half size (26.80x30mm) or full size (50.95x30mm) Mini PCI-e/mSATA slot on motherboard.
Installation Design Vertical installation with plastic support frame for enhanced stability and reliability.

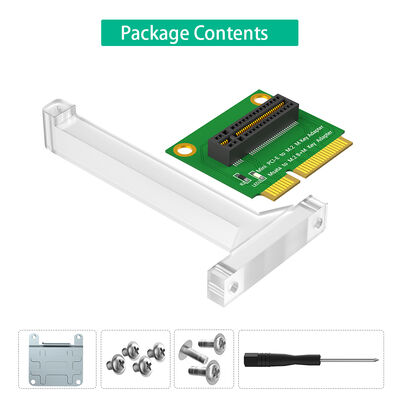

Package Contents
  • 1x Mini PCI-E (mSATA) adapter
  • 1x Plastic support frame
  • 1x Minicard extender metal bracket
  • 4x M2 Screws
  • 1x Screwdriver
  • 1x Manual
Product Images

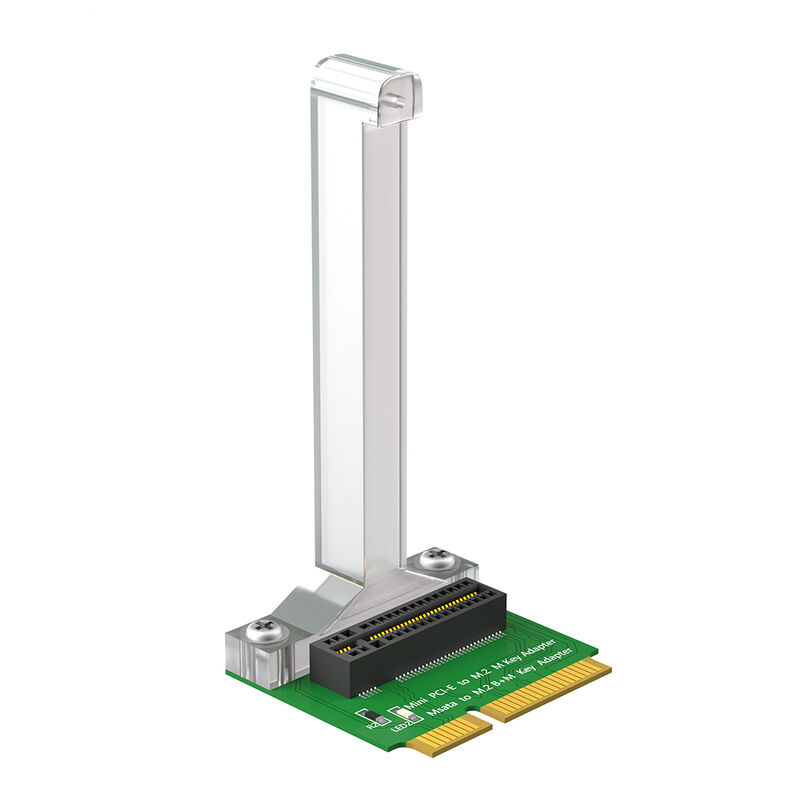

M.2 to Mini PCI-E adapter front view showing connector details
M.2 to Mini PCI-E adapter side view with vertical installation design
Close-up of adapter connectors and mounting points
Adapter with plastic support frame installed
Package contents including screws and screwdriver
Installation diagram showing proper mounting orientation
Company Information
About our company and manufacturing capabilities
Factory showroom and production facilities
Quality certificates and industry certifications
Why choose our products - quality and reliability benefits
Payment methods and shipping information
Frequently asked questions about our products
Contact information and customer support details
