詳細情報 |
|||
| 材料: | プラスチック | 互換性: | ユニバーサル |
|---|---|---|---|
| 保証: | 1年 | 入力電圧: | 110-240V |
| 出力電流: | 2a | 重さ: | 0.8オンス |
| 出力電圧: | 5V | プラグタイプ: | US/EU/UK/AU |
| 色: | 黒 | 寸法: | 2.5x1.5x1インチ |
| パッケージの内容: | 1 x 電源断絶アダプタ | ||
| ハイライト: | Adjustable atx power breakout board,ODM atx power breakout board,ODM 24 pin atx power supply breakout board |
||
製品の説明

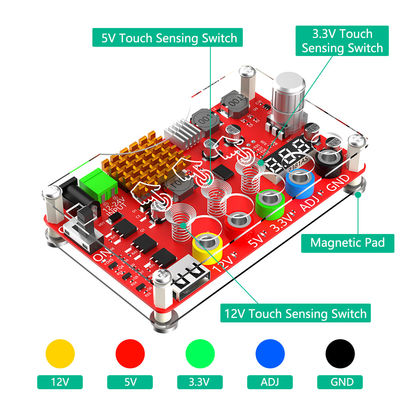

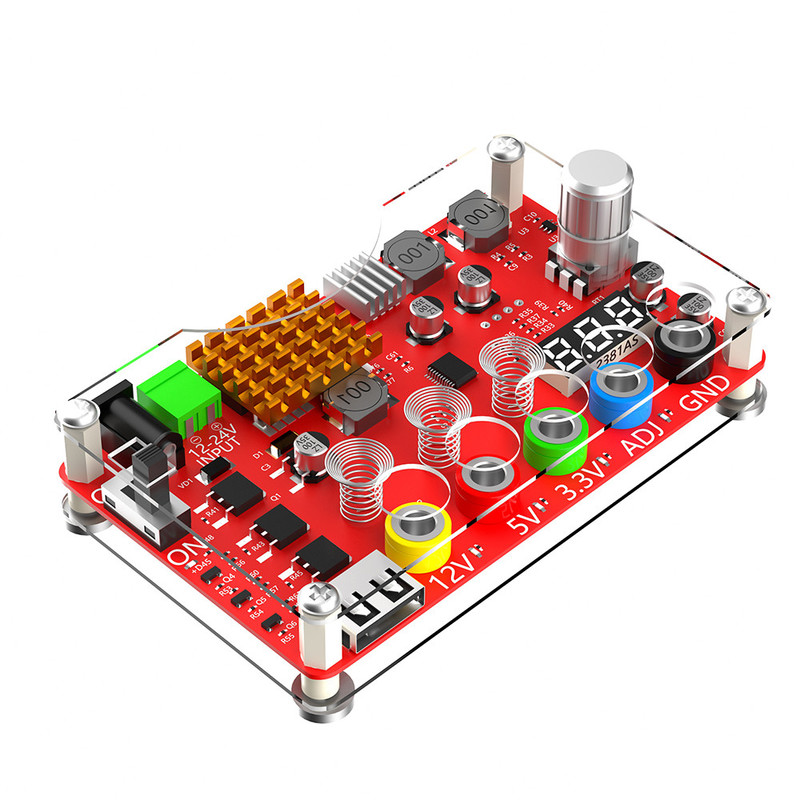

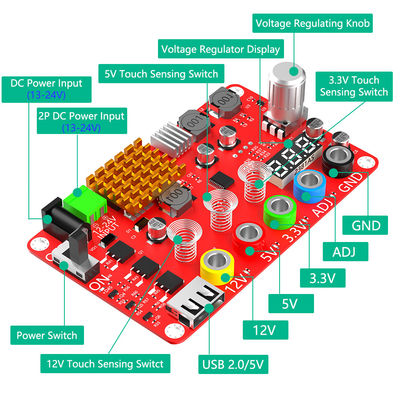

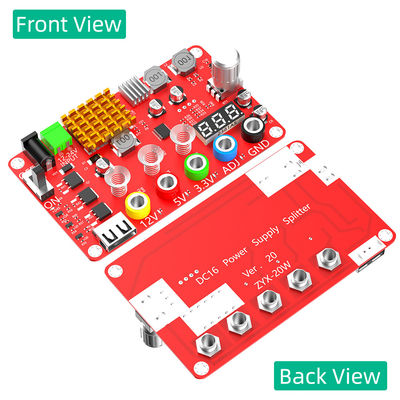

Adjustable ATX Power Breakout Board ADJ 24V 24 Pin ODM
New Version DC Input 13-24V to 3.3V, 5V, 12V and 1.8V-10.8V (ADJ) Output Voltage Breakout Board with ADJ Adjustable Volt
Product Features
- PARAMETER - Input voltage range DC 13V-24V; Output voltage range 1.8V-10.8V (ADJ) with max output current 3A, stable voltage: 3.3V/5V/12V.
- DISPLAY - LED displays input/output voltage by touching sensor switch.
- ADJUSTABLE OUTPUT - Output voltage can be adjusted by voltage knob.
- ON/OFF SWITCHABLE OUTPUT - Output voltage can be turned on/off by touching sensor switch, when the output is off, the screen will display OFF.
- PROTECTION - Input reverse connection protection; short circuit protection.

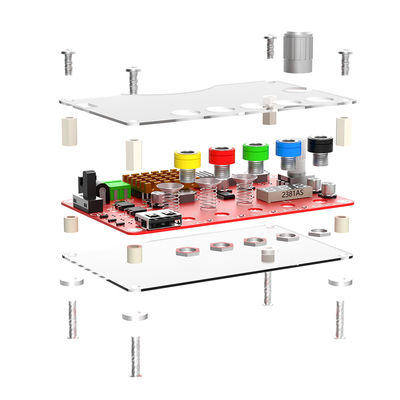

- Includes an acrylic case kit for easy installation and use.

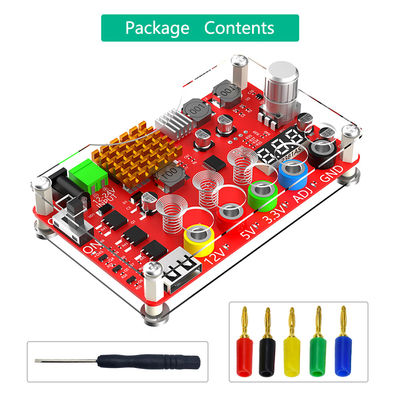

Package Contents
- 1 x ATX Power Supply Breakout Board
- 5 x male banana Plug
- 1 x Screwdriver
