詳細情報 |
|||
| 入力電圧: | 100-240V AC | 互換性: | ユニバーサル |
|---|---|---|---|
| タイプ: | 電源アダプター | 色: | 黒 |
| 出力電圧: | 12V DC | ケーブルの長さ: | 1.2m |
| コネクタタイプ: | 5.5mm×2.1mm | パッケージの内容: | 1 x 電源断絶アダプタ |
| 材料: | プラスチック | プラグタイプ: | 米国のプラグ |
| 特徴: | コンパクトな設計,過負荷保護,ショートサーキット保護 | 出力電流: | 5a |
| ハイライト: | 3.3V Power Supply Breakout Adapter,ADJ Power Supply Breakout Adapter,Acrylic atx power breakout board |
||
製品の説明

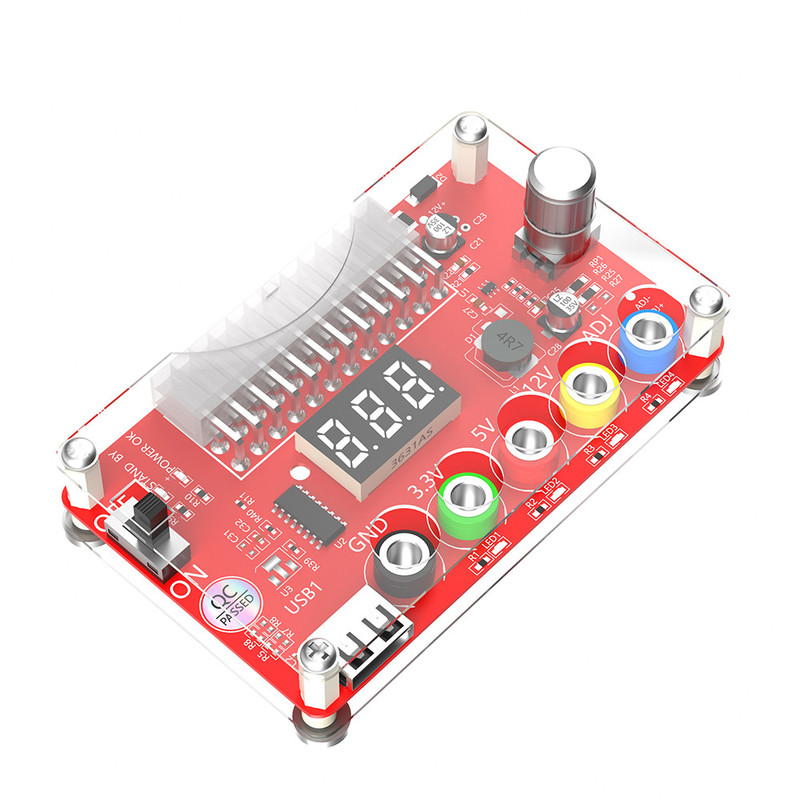

Acrylic ATX Power Supply Breakout Adapter Board ADJ Adjustable 3.3V

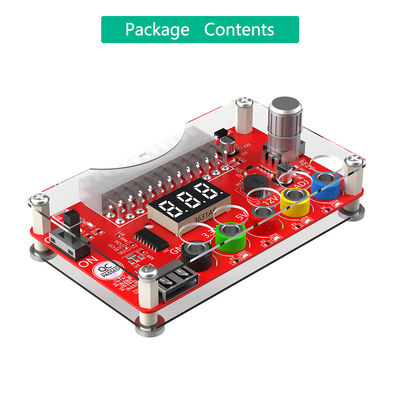

New Version ATX Power Supply Breakout Board and Acrylic Case Kit with ADJ Adjustable Voltage Knob, Supports 3.3V, 5V, 12V outputs.
Product Features

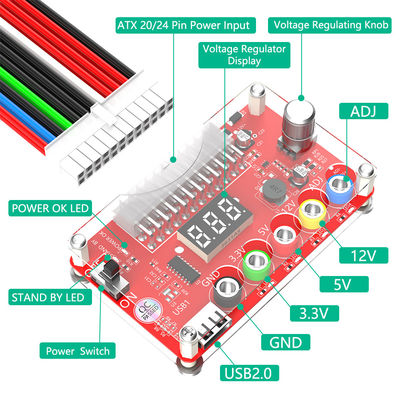

- ATX power supply breakout board with ADJ adjustable voltage knob
- Supports 3.3V, 5V, 12V and adjustable 1.8V-10.8V (ADJ) output voltage

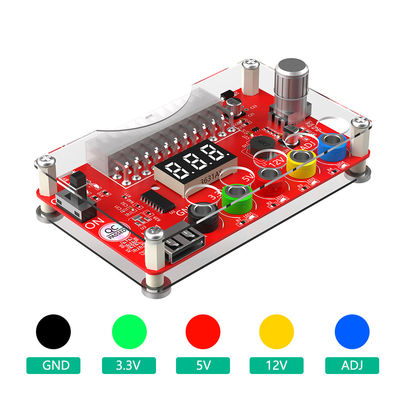

- Voltage output terminals correspond to each screw terminal
- Includes acrylic case kit for easy installation and use
Compatibility
3.3V: STM32 MCU, network communication equipment (Wi-Fi, Bluetooth), microcontrollers, and low-power modules
5V: Raspberry Pi, Banana Pi, Tinker Board, Nano Pi, USB interfaces
9V: Arduino, motor drives, display driver modules
12V: Motor drives, LED lights, vehicle equipment with power requirements under 24W
Product Images
