Reverse 90 Degree PCI-E 3.0 8X Slot To PCIe X8 Adapter Riser Card For 1U Server Case
Reverse 90 Degree PCI-E 3.0 8X Slot To PCIe X8 Adapter Riser Card For 1U Server Case.
Product Specifications
- Installation Direction towards CPU
- Operation Temperature: 0℃~+85℃
- Dimension (Maximum): L*W*H=74*20*13(mm)
- Weight: 18g
Product Overview

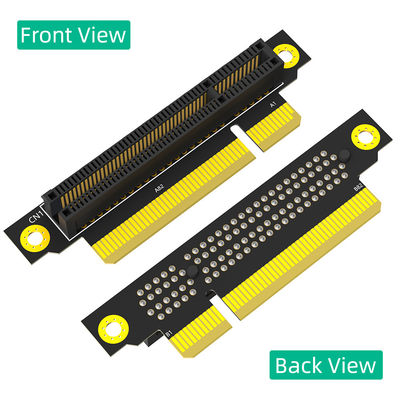

This PCI-E reverse 90 degree adapter is specifically designed for the limited space and diverse connection needs of 1U chassis. Featuring a reverse 90 degree architecture with a flexible PCI-E8X slot design, it uses PCIE-8X specification Golden Finger for precise compatibility with PCI-E8X/16X motherboard slots. The open PCI-E8X slot edge ensures compatibility with PCI-E1X, 4X, 8X, and 16X devices, making it ideal for hardware upgrades in 1U chassis for high-performance computing, network transmission, and data storage applications.
PCI Express Specifications
| PCI Express Edition | Line code | Transfer rate | Throughput (x1) | Throughput (x4) | Throughput (x8) | Throughput (x16) |
|---|---|---|---|---|---|---|
| 1.0 | 8b/10b | 2.5GT/S | 250MB/S | 1GB/S | 2GB/S | 4GB/S |
| 2.0 | 8b/10b | 5GT/S | 500MB/S | 2GB/S | 4GB/S | 8GB/S |
| 3.0 | 128b/130b | 8GT/S | 984.6MB/S | 3.938GB/S | 7.877GB/S | 15.754GB/S |
Product Features
Extremely Compact 1U Adapter Design

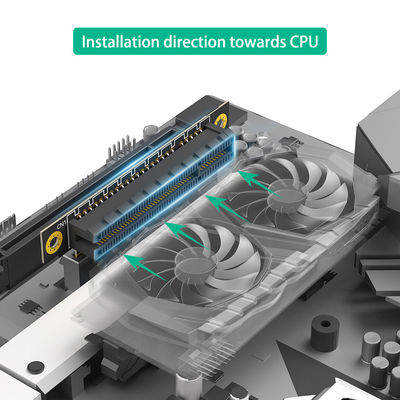

Designed specifically for 1U chassis, this adapter features a reverse 90 degree layout that optimizes space utilization while avoiding interference with internal components. This design improves chassis airflow, reduces overheating risks, and provides maintenance space while ensuring stable operation.
Widely Compatible Device Access

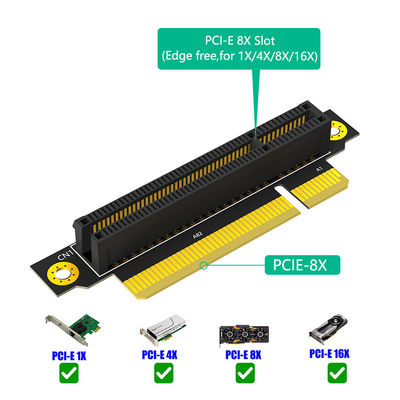

The open PCI-E8X slot edge supports PCI-E1X, 4X, 8X, and 16X devices, including high-performance graphics cards, network cards, and storage expansion cards. This flexibility allows for customized hardware configurations to meet diverse application requirements.
Precision PCIE-8X Gold Finger
Manufactured to PCIE-8X standards with high-purity metal materials for excellent conductivity and signal stability. The precise fit with PCI-E8X/16X motherboard slots ensures reliable connections for high-speed data transmission in servers and workstations.
Product Structure

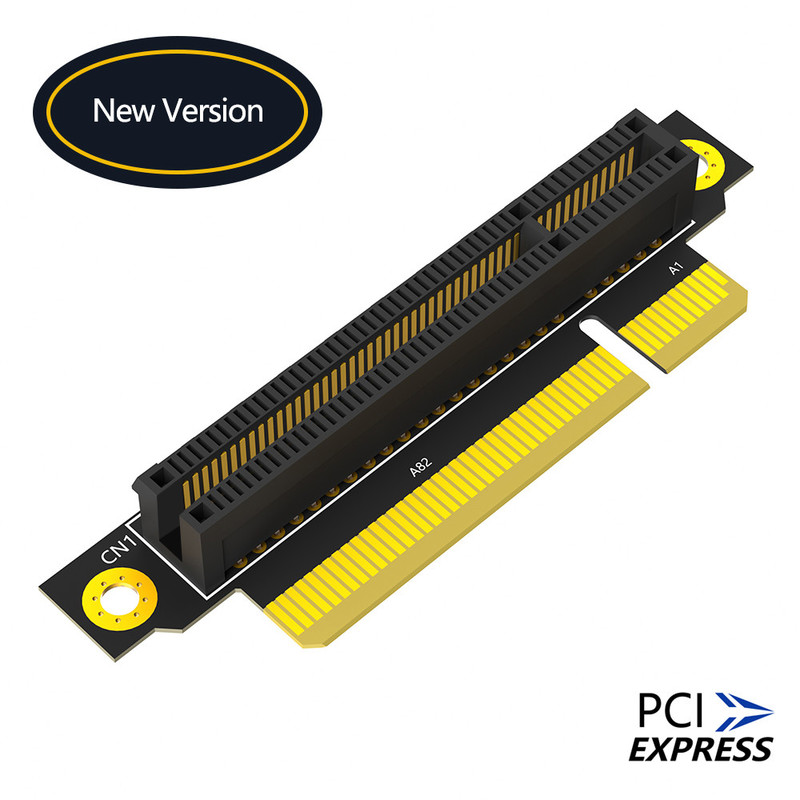

PCI-E 3.0 8X Slot
Features high-quality copper alloy pins with anti-oxidation treatment for long-term conductivity. The open edge design allows side insertion with precise alignment and automatic locking to prevent connection issues from vibration or impact.
PCIE-8X Gold Finger
Precision-engineered with dimensional tolerances for perfect motherboard compatibility. Multi-layer composite metal structure with gold plating enhances conductivity, while reinforced signal layers ensure stable high-speed data transmission.
Adapter Card Structure
Constructed from high-quality multi-layer PCB with excellent insulation and mechanical strength. The optimized circuit layout prevents signal interference, while the precise fit with 1U chassis PCI-E slots ensures secure installation.
Performance Advantages
- Space Optimization: Releases 30% more space in 1U chassis compared to traditional adapters, improving heat management and allowing for future upgrades.
- Functional Expansion: Enables flexible integration of various hardware to enhance network, graphics, or storage capabilities based on business needs.
- High-Speed Transmission: PCI-E standard compliance ensures full-speed data transfer with 98% reduction in transmission-related failures compared to similar products.
Installation Guide
Adapter Card Installation

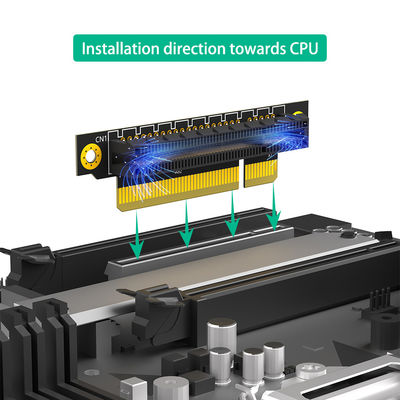

1. Open the 1U server chassis and select an appropriate PCI-E slot with sufficient surrounding space.
2. Align the adapter's PCIE-8X gold finger with the motherboard slot and insert vertically until fully seated (listen for "click").
3. Verify the adapter is securely fixed with no looseness.
2. Align the adapter's PCIE-8X gold finger with the motherboard slot and insert vertically until fully seated (listen for "click").
3. Verify the adapter is securely fixed with no looseness.
Device Connection
1. Select the appropriate PCI-E device for your needs.
2. Align the device's gold finger with the adapter's PCI-E8X slot and insert slowly from the side.
3. Ensure the device is fully inserted and locked in place.
2. Align the device's gold finger with the adapter's PCI-E8X slot and insert slowly from the side.
3. Ensure the device is fully inserted and locked in place.
Usage Monitoring
After installation, the operating system will automatically recognize connected devices. Monitor performance using server management tools, checking for transmission rates, temperature, and errors. Address any abnormalities immediately to maintain stable operation.
Package Contents

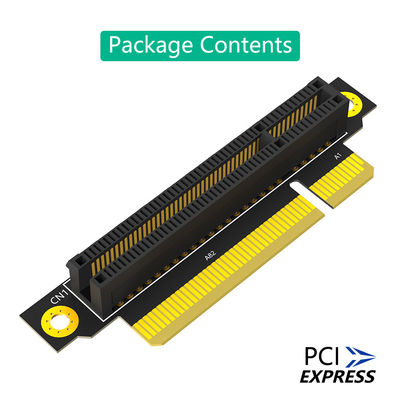

1X PCI-E 8X Male to Female Adapter
