Reverse 90 Degree PCI-E 3.0 4X Slot To X4 Adapter Riser Card For 1U Server Case - Installation Direction Towards CPU
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | ZYX054 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | بطاقة محول عكسي PCI-E 3.0 4X 90 درجة | مادة: | PCBA |
|---|---|---|---|
| يكتب: | بطاقة المحول | تطبيق: | لخادم 1U |
| لون: | أسود | واجهة: | عكس PCI-E 4X |
| طَرد: | حقيبة PE | فتحات متوافقة: | PCI-E x1، PCI-E x4، PCI-E x8، PCI-E x16 |
| وظيفة: | محول PCI-E | ميزة: | سهل التثبيت |
| إبراز: | 4X 3.0 PCI-E Riser Card,OEM PCI-E Riser Card,4X 3.0 pci express 90 degree adapter,OEM PCI-E Riser Card,4X 3.0 pci express 90 degree adapter |
||
منتوج وصف
Reverse 90 Degree PCI-E 3.0 4X Slot To X4 Adapter Riser Card For 1U Server Case

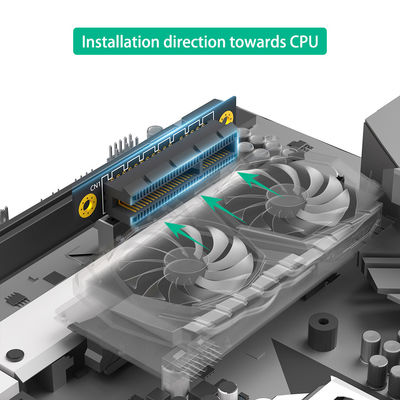

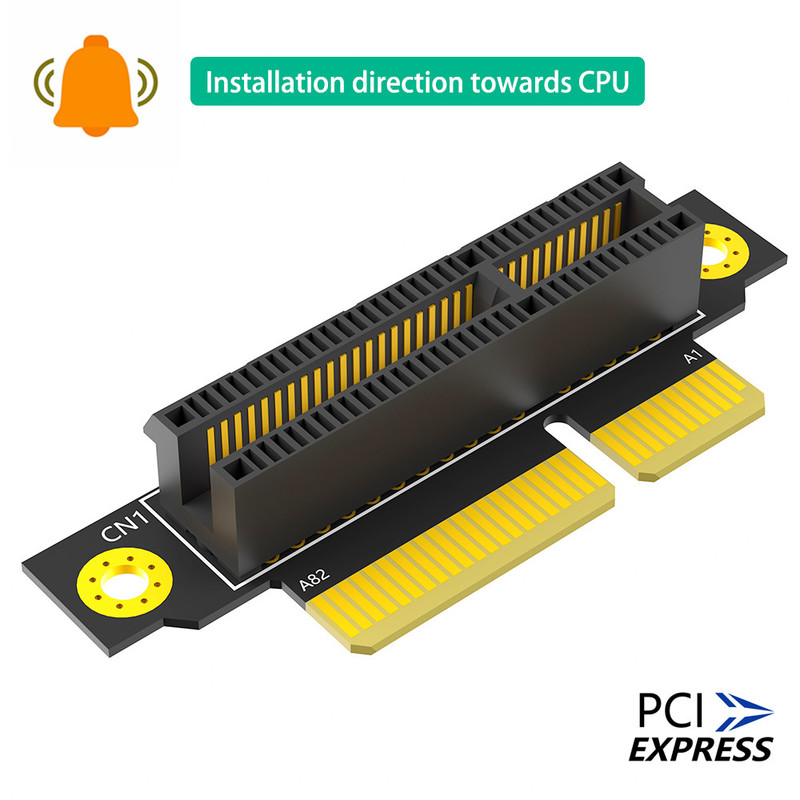

Installation Direction Towards CPU
Product Specifications
- Installation Direction towards CPU
- Operation Temperature: 0℃~+85℃

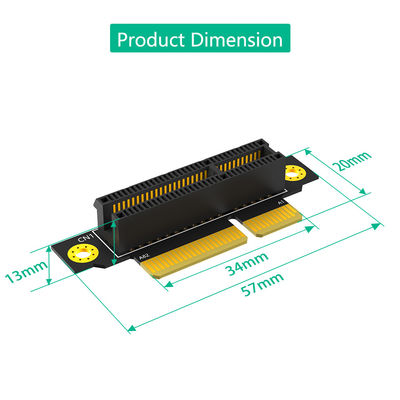

- Dimension (Maximum): 57×20×13mm
- Weight: 18g
Key Features
Customized Design for 1U Chassis
Precisely engineered for the confined space of 1U server chassis, this adapter optimizes every detail to ensure perfect fit with surrounding components while maintaining proper airflow for cooling.
PCI Express Performance
| Edition | Line code | Transfer rate | Throughput (x1) | Throughput (x4) |
|---|---|---|---|---|
| 1.0 | 8b/10b | 2.5GT/S | 250MB/S | 1GB/S |
| 2.0 | 8b/10b | 5GT/S | 500MB/S | 2GB/S |
| 3.0 | 128b/130b | 8GT/S | 984.6MB/S | 3.938GB/S |

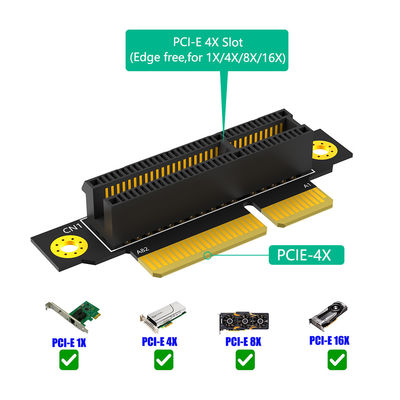

Wide Device Compatibility
Supports PCI-E 1X to 16X devices including network cards, graphics cards, and storage expansion cards, enabling flexible server configuration.
Side-Opening Connector Design
Features a convenient side-opening PCI-E slot for easy installation in tight 1U chassis spaces, with secure locking mechanism for stable connections.
Stable 4X Transmission
PCI-E 3.0 standard ensures reliable high-speed data transfer for demanding server applications with minimal latency.
Product Structure
PCI-E X1 Slot
High-quality metal contacts with precise polishing ensure excellent conductivity and stable signal transmission. Features double locking mechanism for secure connections.

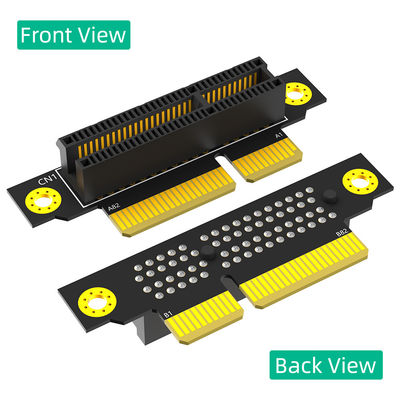

Adapter Card Construction
Multi-layer PCB with optimized circuit layout and shielding minimizes signal loss. 90° bend design incorporates signal enhancement technology for maximum performance.
Performance Advantages
- Space Optimization: Increases usable space by 30% compared to standard adapters
- Multi-functional Expansion: Enables flexible hardware upgrades for diverse server applications
- Reliable Transmission: Reduces server failures caused by data errors by 60%
Installation Guide

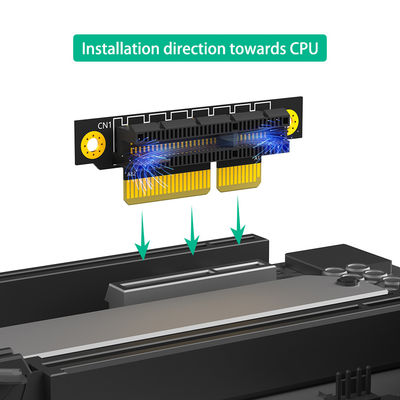

Adapter Installation
Align adapter with PCI-E slot in 1U chassis and insert firmly until click is heard. Verify secure fit before connecting devices.
Device Connection
Insert PCI-E device into side-opening slot until locking mechanism engages. Ensure proper alignment to avoid damage.
Operation Monitoring
Monitor device performance and temperature using server management tools. Check connections if any abnormalities occur.
Application Scenarios
- Network acceleration for SME servers
- Graphics rendering for creative startups
- Data storage expansion in medical/research fields

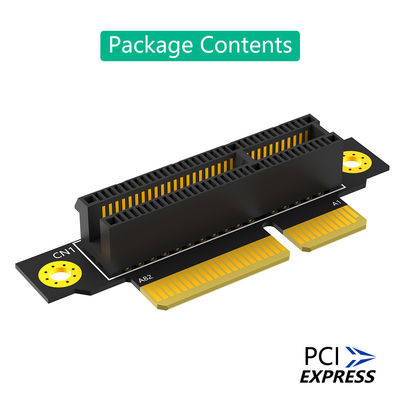

Package Contents
1× PCI-E 4X Male to Female Adapter
Product Images
