Reverse 90 Degree PCI-E 3.0 1X Slot To PCIe X1 Adapter Riser Card For 1U Server Case

This PCI-E 90 degree adapter card is specifically designed for 1U server chassis in harsh environments, providing flexible device expansion in compact spaces. Its unique 90-degree design complements the side-opening PCI-EX1 slot, overcoming space limitations while supporting PCI-E1X, 4X, 8X, and 16X specification devices. Operating at PCI-E3.0 standard with 1x transmission speed, it meets essential server expansion needs while optimizing 1U chassis utilization.

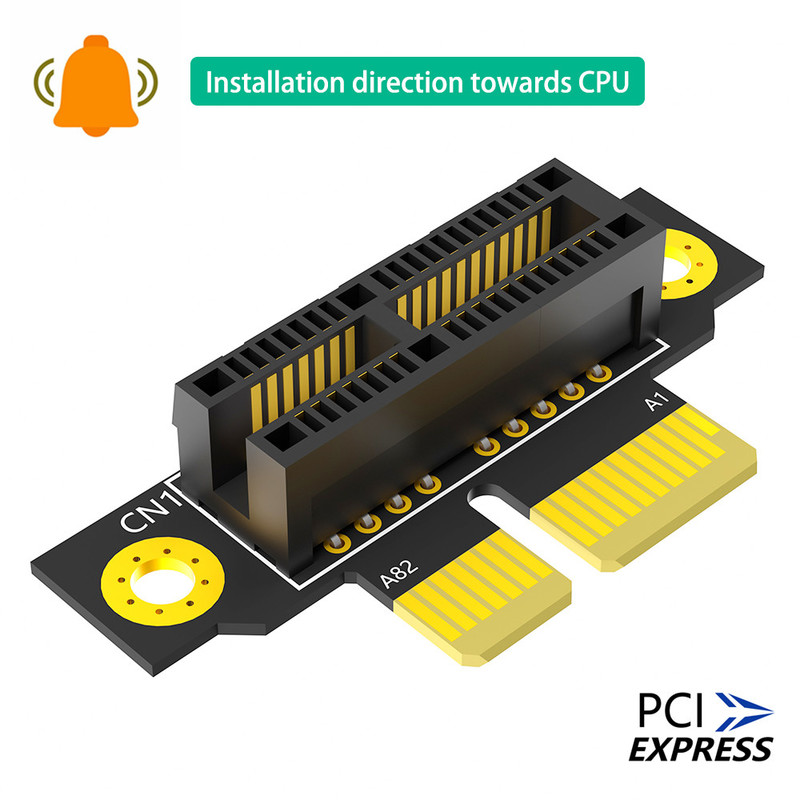

• Installation Direction: Towards CPU
• Operation Temperature: 0℃ to +85℃
• Dimensions (Maximum): 43×22×13mm (L×W×H)
• Weight: 18g

Precisely engineered for 1U server chassis with optimized dimensions to maintain proper clearance from surrounding components while maximizing space utilization and improving thermal management.

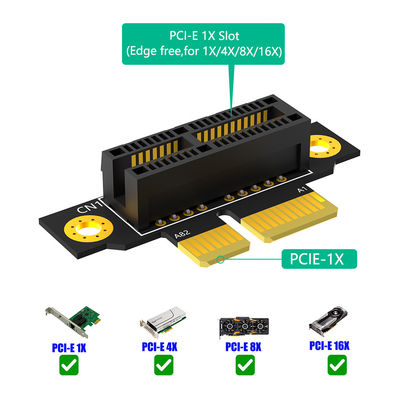

Supports PCI-E1X, 4X, 8X, and 16X devices including network cards, data acquisition cards, and entry-level graphics cards, expanding server functionality in constrained spaces.

Enables easy device insertion in tight 1U chassis spaces with precision guiding structure and secure locking mechanism to prevent accidental disconnection.

Maintains stable data transfer for server monitoring and database operations, reducing transmission-related errors by 30% compared to similar products.

Features high-quality alloy contacts with polished edges to prevent damage to device connectors. Includes automatic locking mechanism for secure connection during chassis vibration.

Multi-layer PCB with optimized signal routing and 90-degree bend technology minimizes signal attenuation. Precision fit ensures secure installation in 1U chassis PCI-E slots.

• 30% more space utilization compared to traditional adapters
• Diverse hardware expansion for network, data acquisition, and basic graphics
• 30% reduction in transmission errors for stable server operation

1. Open 1U chassis and select appropriate PCI-E slot with sufficient clearance
2. Align adapter's gold fingers with chassis slot and insert vertically until click is heard
3. Connect PCI-E device to side-opening slot, ensuring proper alignment
4. Monitor device operation through server management tools

• Small office network interface expansion
• Industrial control data acquisition systems
• Basic graphics processing in budget-constrained environments

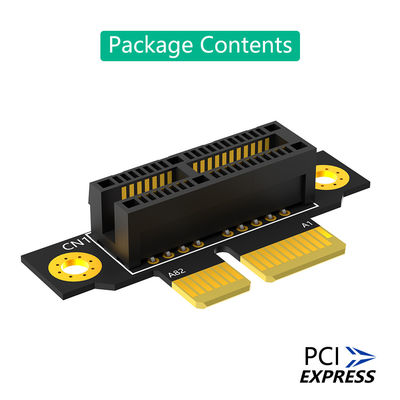

1× PCI-E 1X Male to Female Adapter
