3042 3052 5G Adapter RJ45 Port M 2 Ngff To Usb 3.0 With POE Module
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | ZYX266 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | 5G مع محول بطاقة شبكة POE | لون: | أسود |
|---|---|---|---|
| عدد منافذ الشبكة: | 1 أجهزة كمبيوتر | وضع إمداد الطاقة 1: | DC 5-12V/الجهد العريض 9-36V/POE إمدادات الطاقة |
| وضع إمدادات الطاقة 2: | وحدة POE | حماية القشرة: | IP65 |
| نوع الهوائي: | الهوائي متعدد الاتجاهات/هوائي الاتجاه | توافق بطاقة SIM 1: | بطاقة SIM قياسية |
| توافق بطاقة SIM 2: | مايكرو سيم | توافق بطاقة SIM 3: | نانو سيم |
| عدد سيمز: | دعم البطاقة المزدوجة | طريقة تبديد الحرارة: | ثقوب تبديد المروحة والحرارة |
| إبراز: | 3042 5G Adapter,3052 5G 5G Adapter,POE m 2 ngff to usb 3.0,3052 5G 5G Adapter,POE m 2 ngff to usb 3.0 |
||
منتوج وصف

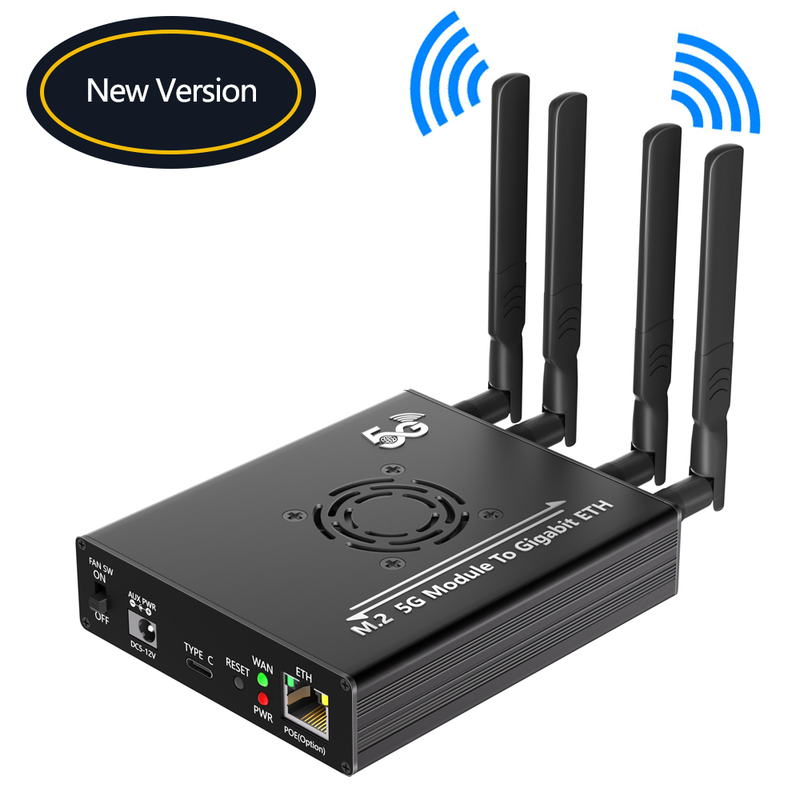

NGFF(M.2) 4G/5G Module to Type C Adapter with POE Module and Dual SIM Card Slot and RJ45 Port, Realtek RTL8125BG Controller.
- Supports 3042/3052 type 4G/5G Module
- Supports SIM/Micro Nano/SIM card, with dual SIM Card support via AT Command
- Versatile compatibility with multiple Ethernet data rates (2.5 Gbps, 1 Gbps, 100 Mbps Base-T connectivity)
- 2.5G Ethernet port automatically negotiates between higher and lower speed connections
- 1x M.2 to Type C adapter
- 2x M2 Screw
- 4x M2.5 screw
- 1x screwdriver
- 4x 2.4G/5G antenna
- 1x TTL 4Pin Cable
- 1x grommet Kit
- 1x SIM Card Extension Kit
- 1x Type C cable
- 1x POE RJ45 Cable
This industrial-grade 5G communication transfer equipment addresses complex scenarios including industrial automation, intelligent IoT, and outdoor operations. Featuring modular compatibility, intelligent heat dissipation, full scene adaptation, and simplified operation, it creates a high-speed bridge between 5G and traditional networks.
| Category | Sub-item | Technical Parameters/Function Description | Value Highlights |
|---|---|---|---|
| Hardware Compatibility | 5G Module Interface | NGFF M.2 B-Key, compatible with 30×42mm (compact) and 30×52mm (high-performance) 5G modules | Compatible with Huawei MH5000, Quectel RM520N and other major brands |
| SIM Card Compatibility | Dual-slot design, supports Standard/Micro/Nano SIM; dual-card redundancy/load balancing | Auto-switch carriers in weak networks, split traffic for high-load stability | |
| Power Interfaces | AUX PWR (DC 5-12V wide-range DC input), TYPE-C (65W PD fast charging + USB 3.1 Gen2 10Gbps) | Adapts to industrial/outdoor power; emergency reverse power supply for debugging | |
| Data Interfaces | ETH Gigabit port (4kV surge/8kV ESD protection), TTL debug port (3.3V level) | Industrial-grade protection for reliable transmission, reduces O&M cost by 70% | |

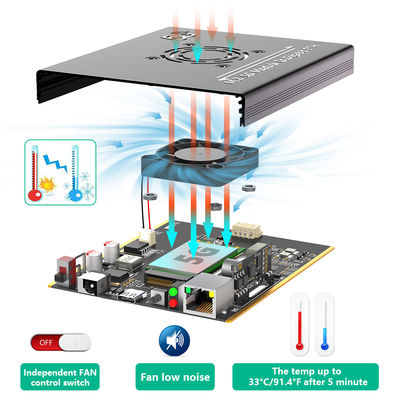

| Heat Dissipation | Manual cooling switch | One-to-one start switch designed for cooling fans | |

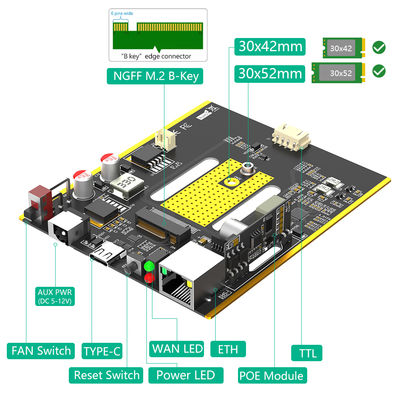

5G Module "Plug and Play": NGFF M.2 B-Key interface compatible with 30x42mm and 30x52mm 5G modules including Huawei MH5000 and Movefar RM520N.
Dual SIM Card Slots: Supports Standard/Micro/Nano SIM cards with dual-card redundancy and load balancing.
Wide Range Power Supply: AUX PWR supports DC 5-12V input, Type-C supports 65W PD fast charging.
Data Highway: ETH gigabit port with industrial-grade protection (4kV surge, 8kV ESD).
- Converts 5G to Gigabit Ethernet with four 5dBi omnidirectional antennas
- Receives weak signals of -110dBm, increases strength by 10-15 dBm
- Covers up to 2km in open areas and 1km in complex environments
Industrial IoT: AGV scheduling latency ≤10ms, increases efficiency by 40%
POE Power Supply: IEEE 802.3af standard (15.4W per port), reduces wiring costs by 50%
Outdoor Security: Supports 4K video transmission (25Mbps), alarm latency <200ms
Temporary Networks: Deploys in 15 minutes, supports 30-50 concurrent terminals
- Panel indicator lights for power/network/system status
- SNMPv3 protocol + private cloud platform for remote monitoring
- Reduces O&M costs by 60% with batch configuration and alarms
- All-metal die-cast housing (IP30 rating)
- Internal three-proof coating (moisture/mold/salt fog resistance)
- Withstands harsh environments including high temperature/humidity
This 5G industrial-grade communication adapter solves communication challenges in industrial, security, and outdoor scenarios with full compatibility, stable heat dissipation, wide adaptability, and simplified operation. It serves as a reliable "connection engine" for digital transformation across industries.
