Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
تفاصيل المنتج:
| مكان المنشأ: | قوانغدونغ ، الصين |
| اسم العلامة التجارية: | BQZYX |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | $9.20-12.20 |
|
معلومات تفصيلية |
|||
| إصدار PCIe: | 4.0 | فتحة PCIe: | X16 |
|---|---|---|---|
| فتحات NVME: | 2 | PCIE إضافية: | x16 (إشارة x8) |
| وزن: | 40 جم | أبعاد: | 18*9*2سم |
| أحجام SSD: | 110 × 22 مم ، 80 × 22 مم ، 60 × 22 مم ، 42 × 22 مم ، 30x22 مم | نوع SSD: | M.2 PCI-E NVME (مفتاح M) |
| دعم اللوحة الأم: | PCIE x8x4x4 bifurcation | مؤشرات LED: | نعم |
| غارة الأجهزة: | لا | دعم الغارة الناعمة: | نظام Win10 |
| وحدات المعالجة المركزية متوافقة: | x299 ، x399 ، معظم الخادم | مادة: | أسود |
| التغليف: | حقيبة كهرباء | ||
| إبراز: | Dual NVMe PCIe 4.0 adapter,M.2 SSD PCIe adapter,Mini PCI-E adapter with warranty,M.2 SSD PCIe adapter,Mini PCI-E adapter with warranty |
||
منتوج وصف
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty

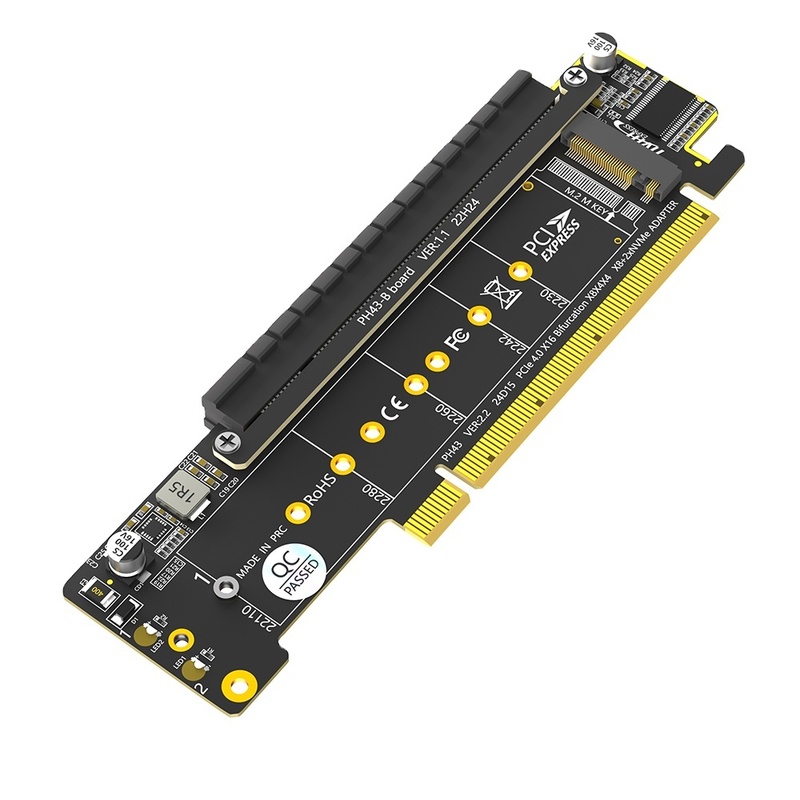

PCIe 4.0 X16 to Dual NVMe and 1x More PCIe X16 (x8 Signal) Adapter for M.2 NVMe SSD (PCI-e Bifurcation)
Specifications
| Item | Value |
|---|---|
| Place of Origin | China, Guangdong |
| Products Status | Used |
| Brand Name | BQZYX |
| Product name | 2 NVME-PCI-E to PCI-E 16X |
| Color | Black |
| Support | NVME-PCI-E to PCI-E 16X |
| Weight | 45g |
| Use | Computer |
| MOQ | 10 Pcs |
| Warranty | 1 Year |

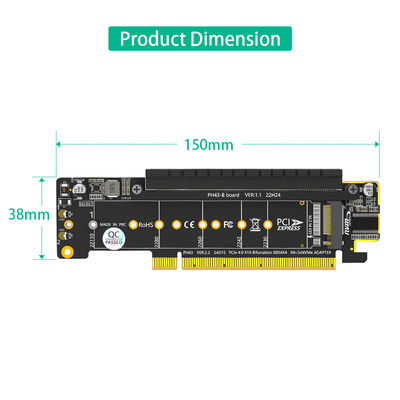

| Size | 18*9*2cm |
| Packaging | Electrostatic bag |
Product Images
Key Features
- Adds 2x M.2 NVMe SSD slots via PCIe 4.0 x16 interface
- Expands additional PCIe x16 slot (x8 signal) for other PCIe devices

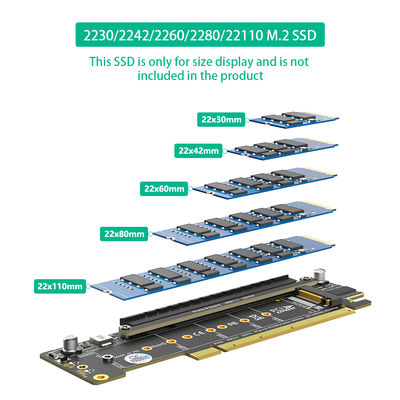

- Compatible with M.2 PCI-e NVMe SSDs in all sizes (110x22mm, 80x22mm, 60x22mm, 42x22mm, 30x22mm)
- Compact design with NVMe SSD slots on both sides

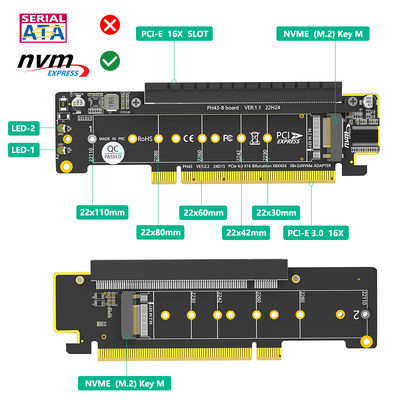

- Individual LED indicators for each SSD working status
- Compatible with most server and X299/X399 motherboards supporting PCIe x8x4x4 bifurcation
Hardware Requirements
- Available PCI-e 4.0 or 3.0 x16 slot on motherboard
- Motherboard must support PCIe x16 bifurcation (set as "PCI-e x8x4x4" in BIOS)
- M.2 PCI-e (M Key) NVMe SSDs only (does not support SATA-based B+M Key SSDs)
- CPU must have sufficient channels to support
Important Notes
1. RAID Support
Does not support hardware RAID - only supports software RAID in Windows 10 or via third-party software (both SSDs should be same model)
2. Bifurcation Requirements
Motherboard must support PCIe x8x4x4 bifurcation for all slots to work at full speed. If only x4x4x4x4 is supported, the expanded PCIe x16 will have x4 signal. Without bifurcation support, only the PCIe x16 slot will work.
3. Compatibility Check
Check your motherboard's user manual to confirm bifurcation support before purchase.

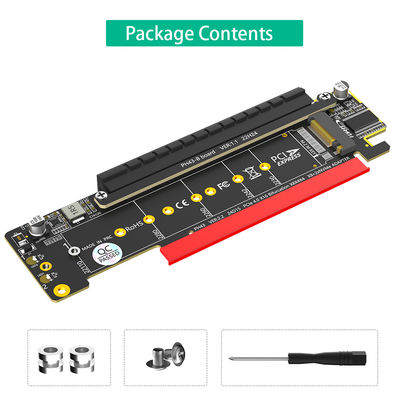

Package Contents
- 1x M.2 NVMe to PCI-E Adapter
- 1x Screw Driver
- 2x M2 Silver screws
- 2x Standoffs
