Mini PCI-E PCI Express To Dual USB Adapter MPCIe To 5 Pin 2 Port USB2.0 Converter For Full/half Height Mini Card
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BQZYX |
| رقم الموديل: | ZYX252 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50-100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حقيبة كهرباء |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 190000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | ميني PCI-E إلى USB 2.0 مزدوج | واجهة المنتج: | ميني PCI-E |
|---|---|---|---|
| واجهة الإخراج: | USB 2.0 (2PCS) | يكتب: | بطاقة محول USB |
| مادة: | PCBA+سلك نحاسي | تطبيق: | سطح المكتب |
| متوافق مع: | ويندوز 10/ 8/ 7/ فيستا/ اكس بي/ لينكس | واجهة: | منفذ USB2.0 |
| أقصى سرعة انتقال: | 30 م / ث | ميزة: | تسهيل التثبيت |
| إبراز: | Dual USB Mini PCI-E Adapter,5 Pin Mini PCI-E Adapter,Full Height Mini PCI-E Adapter,5 Pin Mini PCI-E Adapter,Full Height Mini PCI-E Adapter |
||
منتوج وصف

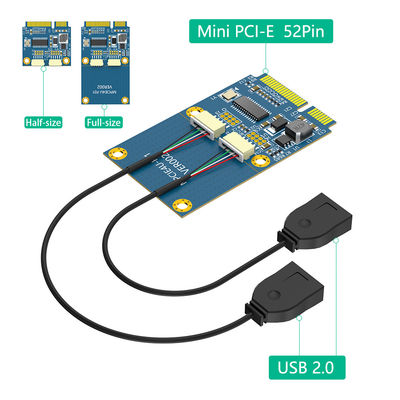

Mini PCI-E PCI Express To Dual USB Adapter MPCIe To 5 Pin 2 Port USB2.0 Converter
This adapter converts Mini PCI-E slots to dual USB 2.0 ports, providing convenient interface expansion for laptops and desktop computers. It supports both full and half-height MiniCard slots and is compatible with various USB devices.
Key Features
- Converts Mini PCI-E slot to two USB 2.0 ports
- Supports both full and half-height MiniCard slots
- Plug-and-play operation - no drivers required
- Backward compatible with USB 3.0 devices
- Gold-plated connectors for reliable signal transmission
- Compact design for internal installation
Technical Specifications
| Interface Type | Mini PCI-E to USB 2.0 |
|---|---|
| USB Ports | 2 x USB 2.0 (5-pin) |
| Compatibility | USB 2.0/1.1 devices (backward compatible with USB 3.0) |
| Supported Card Sizes | Full-height and half-height MiniCard slots |
| Driver Requirement | None (plug-and-play) |
Mini PCI-E Standard Pin Definition
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | WAKE# | 27 | GND |
| 2 | 3.3Vaux | 28 | 1.5V |
| 3 | COEX1 | 29 | GND |
| 4 | GND | 30 | SMB CLK |
| 5 | COEX2 | 31 | PETnO |
| 6 | 1.5V | 32 | SMB DATA |
| 7 | CLKREQ# | 33 | PETpO |
| 8 | UIM PWR | 34 | GND |
| 9 | GND | 35 | GND |
| 10 | UIM DATA | 36 | USB D- |
| 11 | REFCLK- | 37 | GND |
| 12 | UIM CLK | 38 | USB D+ |
| 13 | REFCLK+ | 39 | 3.3Vaux |
| 14 | UIM RESET | 40 | GND |
| 15 | GND | 41 | 3.3Vaux |
| 16 | UIM_VPP | 42 | LED WWAN# |
| 17 | Reserved | 43 | GND |
| 18 | GND | 44 | LED WLAN# |
| 19 | Reserved | 45 | Reserved |
| 20 | W DISABLE# | 46 | LED WPAN# |
| 21 | GND | 47 | Reserved |
| 22 | PERST# | 48 | 1.5V |
| 23 | PERn0 | 49 | Reserved |
| 24 | 3.3Vaux | 50 | GND |
| 25 | PERpO | 51 | Reserved |
| 26 | GND | 52 | 3.3Vaux |
Performance Advantages
Convenient Interface Expansion
Easily adds two USB ports by utilizing the Mini PCI-E slot, saving desktop space compared to external hubs. Provides a simple and efficient way to expand computer interfaces without complex installation.
Stable Data Transmission
Ensures reliable data transfer for both USB 2.0 and compatible USB 3.0 devices. Maintains stable transfer rates for large files with minimal risk of data loss or transmission errors.
Cost-Effective Upgrade
An affordable solution for expanding USB ports without replacing motherboards or purchasing expensive expansion devices. Offers excellent value for meeting basic interface expansion needs.
Installation Guide
- Power off the computer and disconnect from power source
- Locate the Mini PCI-E slot on the motherboard
- Align the adapter's gold fingers with the slot and insert firmly
- Secure the adapter using the mounting screw
- Power on the computer - no drivers required
- Connect USB devices to the adapter's ports
Compatible Devices
- Wireless mouse USB receivers
- USB Bluetooth adapters
- USB WiFi adapters
- USB flash drives
- Memory card readers (microSD/M2)
- USB cameras
- Printers and external storage
Application Scenarios
Laptop Interface Expansion
Ideal for modern laptops with limited USB ports, allowing connection of multiple devices for office work, presentations, or data transfer.
Desktop Computer Upgrade
Extends the life of older desktops by adding modern USB connectivity options without requiring motherboard replacement.
Small Server Expansion
Provides compact USB interface expansion for servers needing occasional connections to external storage or maintenance devices.
